With brass washer / without ball bearing.

At least 25% greater WLL than traditional Grade 8 products.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Magnaflux crack detection is performed 100% on each batch.

  • Material: Quenched and tempered alloy steel.
  • Marking: According to standard, All parts with batch number for quality certified and traceability.
  • Temperature range: Tempering temperature minimum 400°C.
  • Standard: EN 1677-2
  • Warning: This hook is a positioning device and is not intended to rotate under load. When using hoist hook with grade 100 chain, YOKEhoist hooks is recommended to be grinded the WLL (which is for a safety factor 5:1) off the hook.
  • Safety factor: 4:1
  • Grade: 10
Yoke X-175 Swivel Hoist Hook Grade 10/100

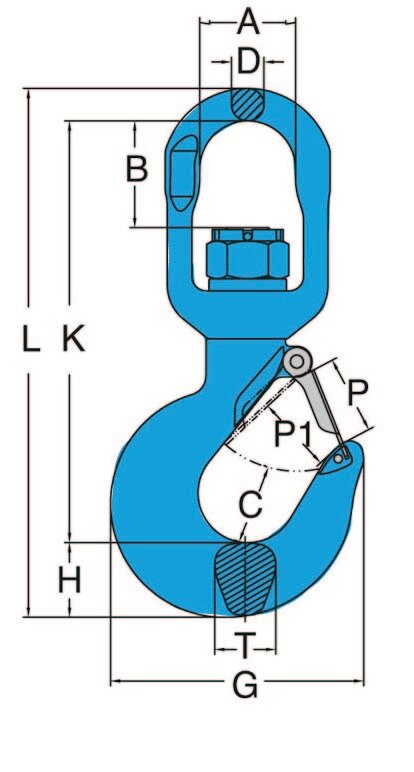

Yoke X-175 Swivel Hoist Hook Grade 10/100 measurements
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
For chain Grade 10 Ø
mm
A
mm
B
mm
C
mm
D
mm
G
mm
H
mm
K
mm
L
mm
P
mm
P1
mm
T
mm
Weight
kg
11.108-175015BB BB 1,4 6 32 23 25 12 80 21 126 158 24 19 18 0,7
11.108-175002CC CC 2,5 7,8 36 29 26 13 91 25 143 181 24 20 22 0,9
11.108-175003DD DD 4 10 41 35 29 16 102 29 172 217 28 25 24 1,5
11.108-175005EE EE 6,7 13 46 44 38 21 130 36 211 269 35 31 31 3,2
11.108-175007FF FF 10 16 61 51 49 23 166 46 258 328 43 39 42 5,7
11.108-175011GG GG 16 20 74 82 62 25 196 58 326 409 61 57 48 9,5
11.108-175015HH HH 19 22 97 96 65 33 221 64 372 471 72 62 56 16,5
