Insulated blank swivel for various lifting applications. Design for protection of overhead crane during welding operations on suspended loads. Individually tested to resist 1000 Volts insulated with Test Certificate.

RFID equipped (chip) for easy service and inspection

For connection with suspension parts you will need Coupling Pin and C-Sleeve Set X-P015, please order them separately.

Order suspension parts Coupling Master Link 8-051.

2 pcs. half coupling links can be ordered as 1 pc. X-015 + 1 pc. X-P015.
Other suspension parts on request.

  • Material: Quenched and tempered alloy steel.
  • Marking: According to standard
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 8
RFID equipped
Select a row from the table below, then click the add to quote button

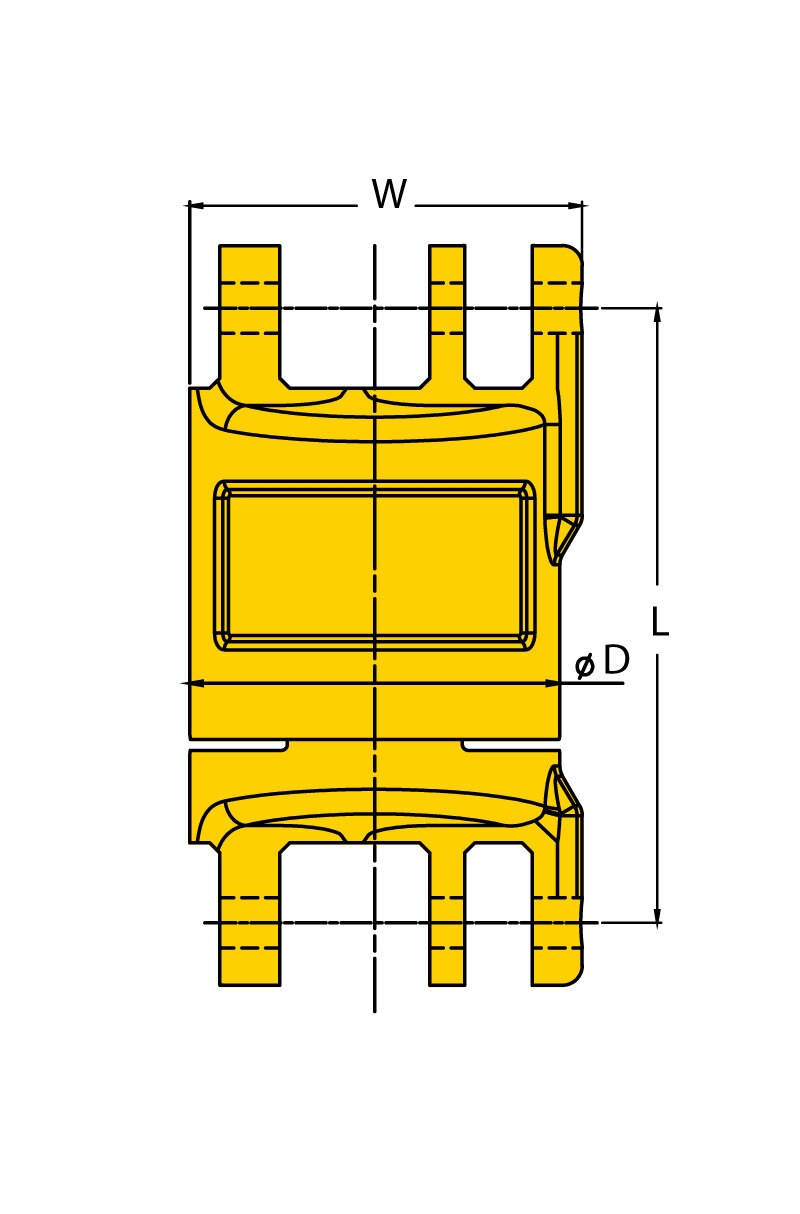

Part Code WLL
ton
For chain gr 8 Ø
mm
D
mm
L
mm
Weight
kg
11.468-088N-07 2 7, 8 50 75 0.6
11.468-088N-10 3.15 10 62 94 1.2
11.468-088N-13 5.3 13 77 123 2.4
11.468-088N-16 8 16 94 143 4.2
11.468-088N-20 12.5 18, 20 109 164 6.7
