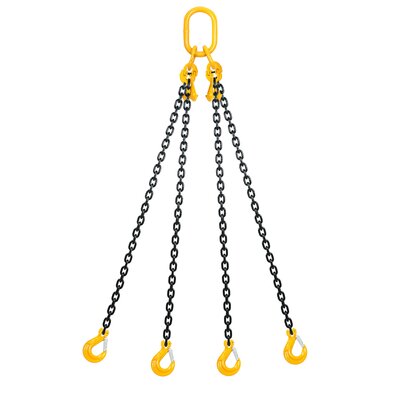

4-legs chain sling assembly equipped with latch hooks and grab hooks. Alternative ends are also available, e.g. foundry hooks, shackles etc. Slings are equipped with a load plate.
The L-dimension is measured from the inside of the top of the master ring to the inside of the bottom of the hooks.
- Material: Steel
- Marking: According to standard, CE-marked
- Temperature range: -40 - (+)200°C / 400°C = WLL 75%
- Finish: Painted, black / yellow
- Standard: EN 818-4
- Warning: Not to be heat-treated
- Safety factor: 4:1
- Grade: 8
