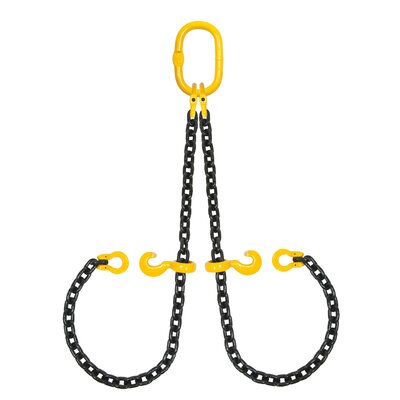

Haklift

Used for tightening loop lift. Perfect for lifting, among others, pipe bundles, lumber bundles and reinforcement steel. The assemblies include a load plate

The L-dimension is measured from the inside of the top of the master ring to the inside of the bottom of the omega connector.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, black / yellow
  • Standard: EN 818-4
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button
Part Code Chain size
mm
WLL 45- 60°
ton
WLL 0-45°
ton
NKLI07201 7 1,2 1,7
NKLI08201 8 1,6 2,2
NKLI10201 10 2,5 3,5
NKLI13201 13 4,2 6
NKLI16201 16 6,3 8,9
