General: Jacks model JJ.

Features and benefits:
- Made of cast iron; resistant to continuous heavy operating conditions.
- Unique ratchet handle for engagement both wheel and plunger.
- Self-locking; for safe working.
- Robust; can be used close to welding works and under water.
- Low maintenance.
- A range of 13 models with different capacities and stroke lengths.
- Almost all jacks have a handle.

Standard supplied with:
- Handle bar

Product Picture 1
Product Picture 2

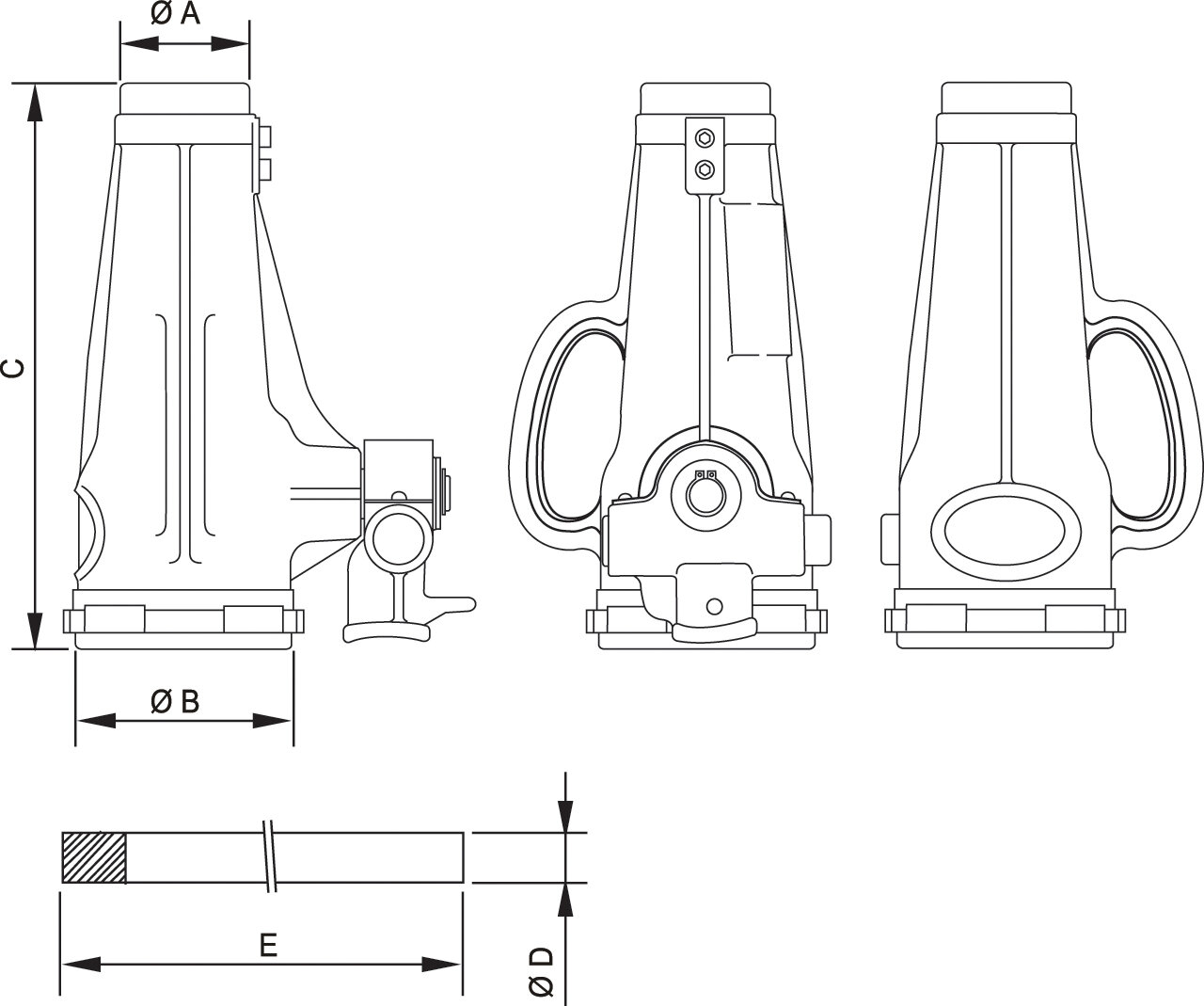

Drawing
Select a row from the table below, then click the add to quote button
Model Stroke
mm
Closed height
mm
tonnage t capactiy kN/t A
mm
B
mm
C
mm
D
mm
E
mm
Weight
kg
JJ 1015 150 280 10 98.1/10 65 108 280 25 600 12
JJ 1513 125 255 15 147.2/15 63 113 255 25 600 12
JJ 2513 125 255 25 245.3/25 77 127 255 25 700 16
JJ 2525 250 395 25 245.3/25 77 127 395 25 700 21
JJ 2533 330 485 25 245.3/25 77 127 485 25 700 25
JJ 3020 200 350 30 294/30 95 148 350 25 700 26
JJ 3513 130 280 35 343.4/35 87 147 280 32 700 24
JJ 3525 250 410 35 343.4/35 87 147 410 32 700 32
JJ 3535 350 535 35 343.4/35 87 147 535 32 700 37
JJ 5013 130 290 50 490.5/50 105 166 290 32 800 31
JJ 5025 250 445 50 490.5/50 105 166 445 32 800 42
JJ 5035 350 555 50 490.5/50 105 166 555 32 800 47
JJ 10011 105 310 100 981/100 127 235 310 32 1,500 75
