With M4 classification of mechanism this hoist is extremely reliable. This hoist will guarantee the continuity of your process. The TMH hoists are designed
with a full load supporting eye for installation and securing (during lift applications) the hoist for extra safety.

Standard features:

  • Precise variable speed control (cord- and pendant control)
  • Optimum control of the load, very precise positioning
  • Main air shut off valve
  • Mechanical end stop system
  • Load limiter built-in without loss of headroom
  • Low noise level (80 dBA)
  • Air pressure 0,4 - 0,63 MPa (4-6,3 bar)
  • Piped away exhaust air

Optional features:

  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request)
  • Choice of pendants
  • Radio control pendant for electro pneumatic controls
  • Control systems
  • Chain collectors (PVC, galvanised or stainless steel)
  • Various types of hook or clevis available
  • Air supply systems and valves
  • Piped away exhaust air
  • In house design for "specials"
  • Festoon systems
  • Main air shut off valve

ATEX:

  • According to EC Directive 94/9/EC (Ex Classification)

Recommended:
We highly recommend the use of an SMC air treatment unit. (Sold seperatly.)

Product Image 2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Type Chain falls Lifting speed without load
m/min
Air consumption lifting (l/sec) Lifting speed with load
m/min
Lowering speed with load
m/min
Air consumption lowering (I/sec) Weight with 3m HOL
16.30TMH-3000C 3 TMH-3000C 1 10.8 56 5.4 10.2 68 99
16.30TMH-3000PE 3 TMH-3000PE 1 10.8 56 5.4 10.2 68 99
16.30TMH-6000C2 6 TMH-6000C 2 5.4 56 2.7 5.1 68 124
16.30TMH-6000P2E 6 TMH-6000PE 2 5.4 56 2.7 5.1 68 124

Also available in oil free version upon request.

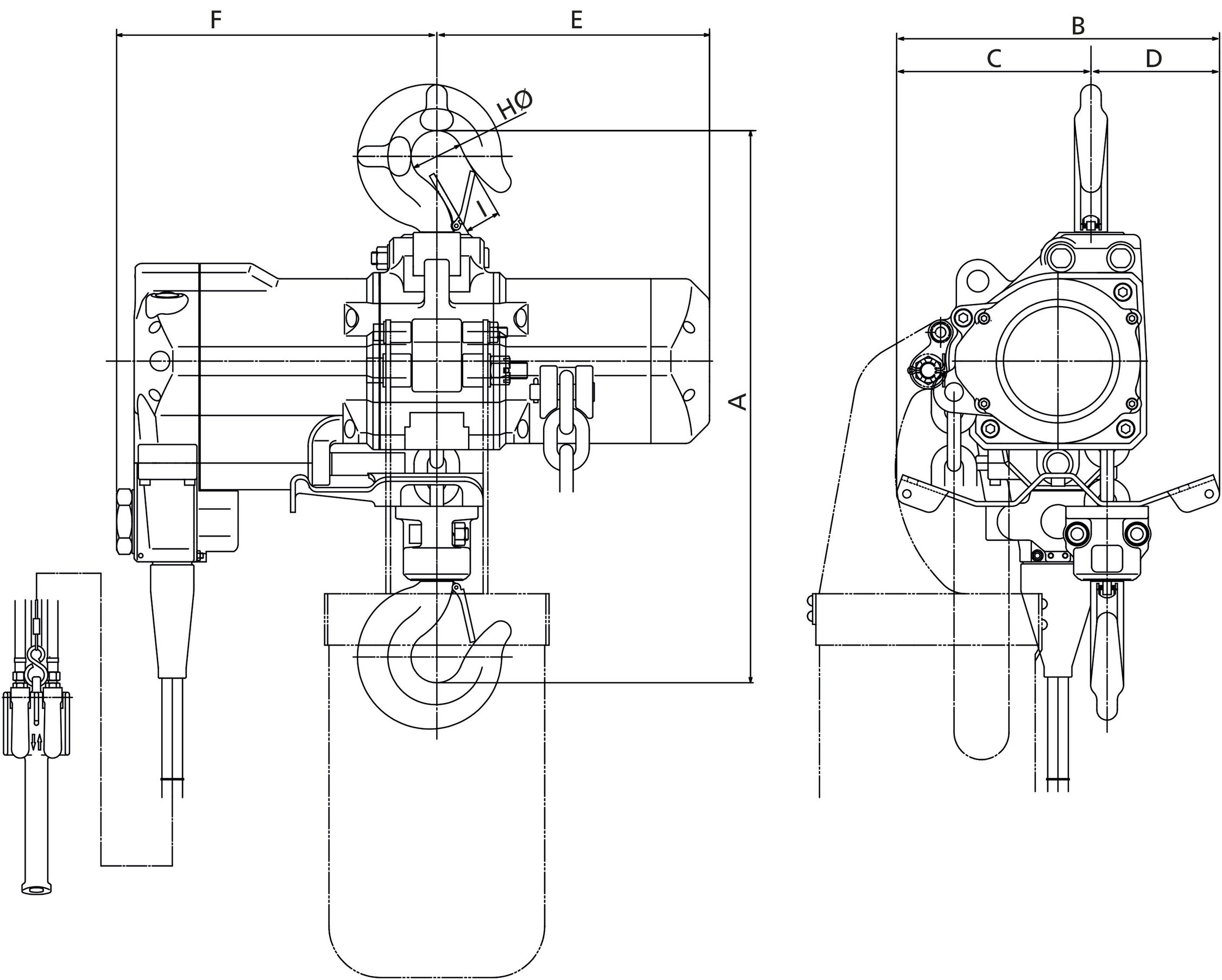

Type A B C D E F H Ø I
TMH-3000C 537 314 189 125 265 311 50 34
TMH-3000PE 537 314 189 125 265 311
TMH-6000C2 742 371 245 126 265 311 65 42
TMH-6000P2E 742 371 245 126 265 311 65 42
TMH-9000C3 783 455 160 295 265 311 75 53
TMH-9000P3E 783 455 160 295 265 311 75 53
TMH-12000C4 856 398.5 149.5 249 309 266 83 64
TMH-12000P4E 856 398.5 149.5 249 309 266 83 64
TMH-15000C5 855 466 152.5 313.5 300 275 83 58
TMH-15000P5E 855 466 152.5 313.5 300 275 84 58
