Red Rooster

These RED ROOSTER Air Chain Hoists are especially developed for heavy industrial applications. Robust cast steel body. Standard with load limiter.

Standard features:

  • Precise variable speed control (cord- and pendant control).
  • Optimum control of the load, very precise positioning.
  • Compact design.
  • Endstop system.
  • Load limiter built-in without loss of headroom.
  • Cord control or pendant control.
  • Low noise level.
  • Air pressure 0,4 - 0,63 MPa (4 - 6,3 Bar).

Optional:

  • Marine Specification/Corrosion resistant
  • Paint systems from C2 - Industrial to C5 - Offshore specification (Red finish as standard. Other RAL colours available on request).
  • Choice of pendants.
  • Radio control pendant for electro pneumatic controls.
  • Control systems.
  • Chain collectors (PVC, galvanised or stainless steel).
  • Various types of hook or clevis available.
  • Air supply systems and valves.
  • Air Service unit.
  • Piped away exhaust air.
  • In house design for "specials".
  • Festoon systems.
  • Main air shut off valve.

ATEX:

  • According to EC Directive 94/9/EC (Ex Classification)

Recommended:
We highly recommend the use of an SMC air treatment unit. (Sold seperatly.)

Product Image 3
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Chain falls Air consumption lifting (l/sec) Air consumption lowering (I/sec) Lifting speed with max.load
m/min
Lowering speed with max.load
m/min
Weight at 3m HOL
kg
Lifting speed without load
m/min
16.30TMH-10C 10 2 58.3 71.7 1.6 3.2 206 3.3
16.30TMH-10P2E 10 2 58.3 71.7 1.6 3.2 206 3.3
16.30TMH-15C 15 3 58.3 71.7 1.05 2.1 316 2.2
16.30TMH-15P2E 15 3 58.3 71.7 1.05 2.1 316 2.2
16.30TMH-20C 20 4 58.3 71.7 0.8 1.6 466 1.6
16.30TMH-20P2E 20 4 58.3 71.7 0.8 1.6 466 1.6
*1 Hoist with shackles instead of hooks

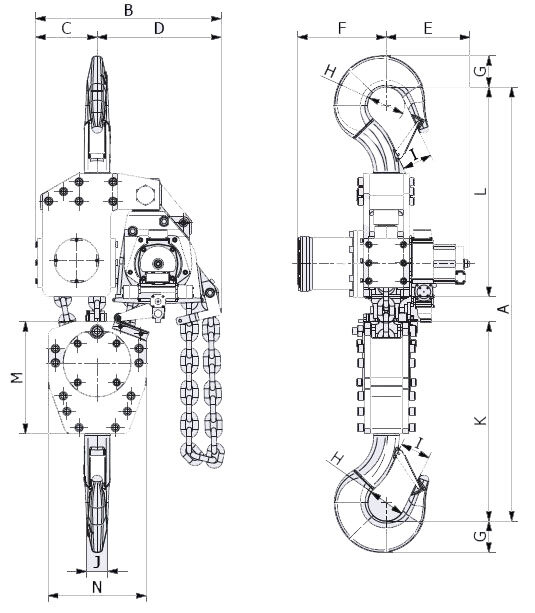

Type A B C D E F H Ø I
TMH-10C 850 582 287 298 280 188 60 40
TMH-10P2E 850 582 287 298 280 188 60 40
TMH-15C 1000 565 265 300 200 435 84 58
TMH-15P2E 1000 565 265 300 200 435 84 58
TMH-20C 1150 715 250 365 350 430 110 78
TMH-20P2E 1150 715 250 365 350 430 110 78
TMH-25C2 1290 566 343 223 352 356 100 71
TMH-25P2E 1290 566 343 223 352 356 100 71
TMH-30C2 1290 566 343 223 352 356 100 71
TMH-30P2E 1290 566 343 223 352 356 100 71
TMH-37,5/C3 1440 708 352 356 557.5 557.5 125 90
TMH-37,5/P3E 1440 708 352 356 557.5 557.5 125 90
TMH-45/C3 1440 708 352 356 557.5 557.5 125 90
TMH-45/P3E 1440 708 352 356 557.5 557.5 125 90
TMH-50C4 1820 805 370 435 515 515 143 100
TMH-50P4E 1820 805 370 435 515 515 143 100
TMH-60C4 1820 805 370 435 515 515 143 100
TMH-60P4E 1820 805 370 435 515 515 143 100
TMH-75C6 1800 707 269 438 600 600 140 115
TMH-75P6E 1800 707 269 438 600 600 140 115
TMH-100C8 1876 1360 269 438 678 682 160 130
TMH-100P8E 1876 1360 269 438 678 682 160 130
