KWB

General: Connecting link for: masterlink - chain, chain - chain, (eye)hook - chain.

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Temperature range: -40°C up to 380°C
  • Standard: EN 1677-1
  • Note: Not to be heat-treated.
  • Warning: For straight in-line pull only. Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 10

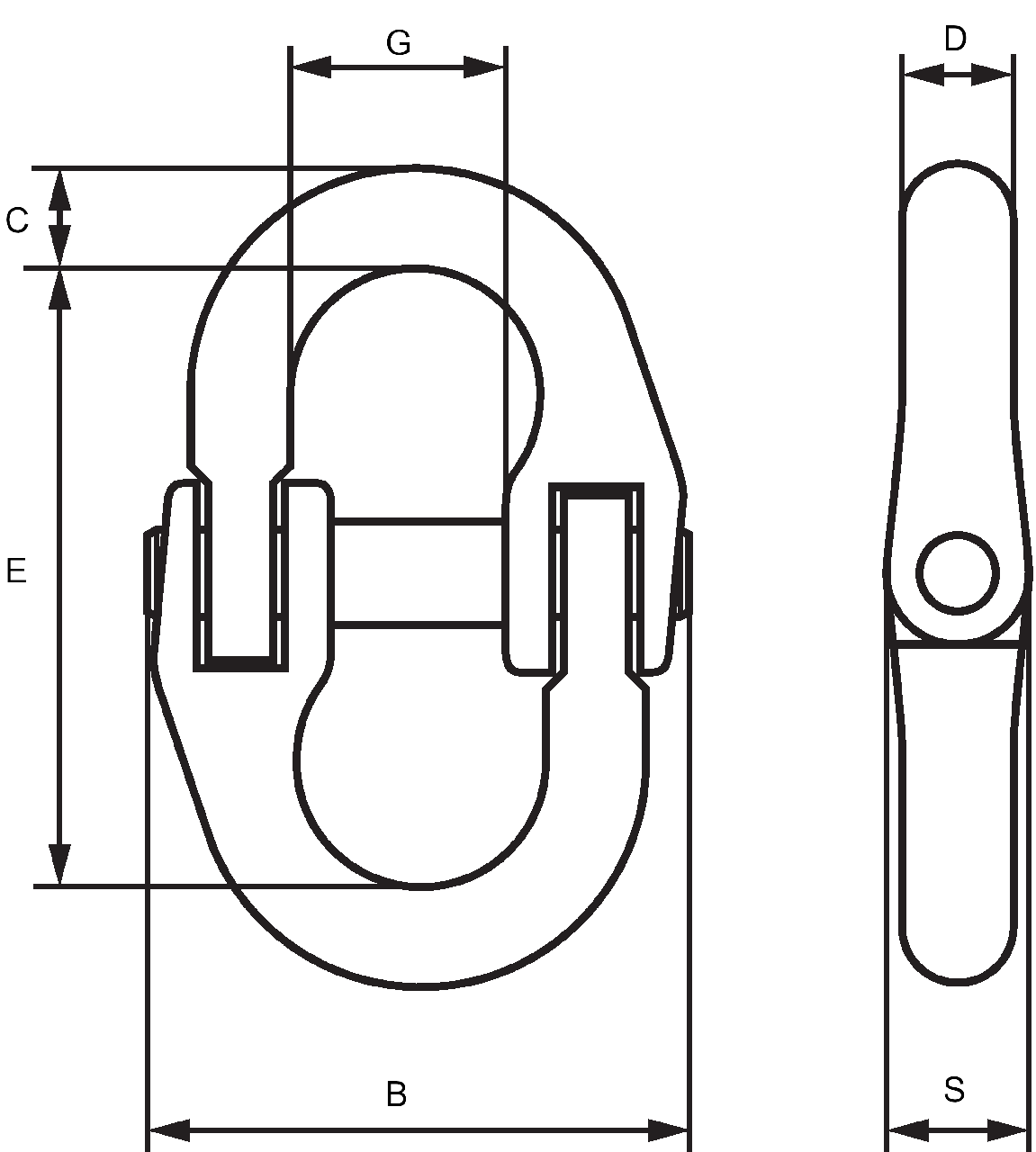

kwb_V_S_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
for chain ø
mm
E
mm
C
mm
S
mm
D
mm
B
mm
G
mm
Weight
kg
11.0676492 V/S 26 26.5 26 190 40 46 30 175 60 6.7
11.0643426 V/S 13 6.7 13 88 20 22 17 79 28 0.7
11.0643430 V/S 8 2.5 8 62 12 14 10 55 18 0.18
11.0643432 V/S 10 4 10 72 15 18 13 64 24 0.33
11.0665653 V/S 6 1.4 6 44 8 11 8 39 14 0.06
11.0665656 V/S 16 10 16 103 21 29 21 106 33 1.4
11.0669997 V/S 7 1.9 7 51 10 13 8 47 17 0.12
11.0669998 V/S 19/20 16 19-20 115 30 35 24 123 42 2.4
11.0691519 V/S 22 19 22 161 34 39 25 148 51 4.15
