General:

Foundry Hooks are hooks with a bigger opening without safety latch often used in foundries.  Always verify if hooks without safety latch are allowed for your application.

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Temperature range: -40°C up to 380°C
  • Standard: EN 818-4
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 10
kwb_FHCX_L
kwb_FHCXm
Select a row from the table below, then click the add to quote button

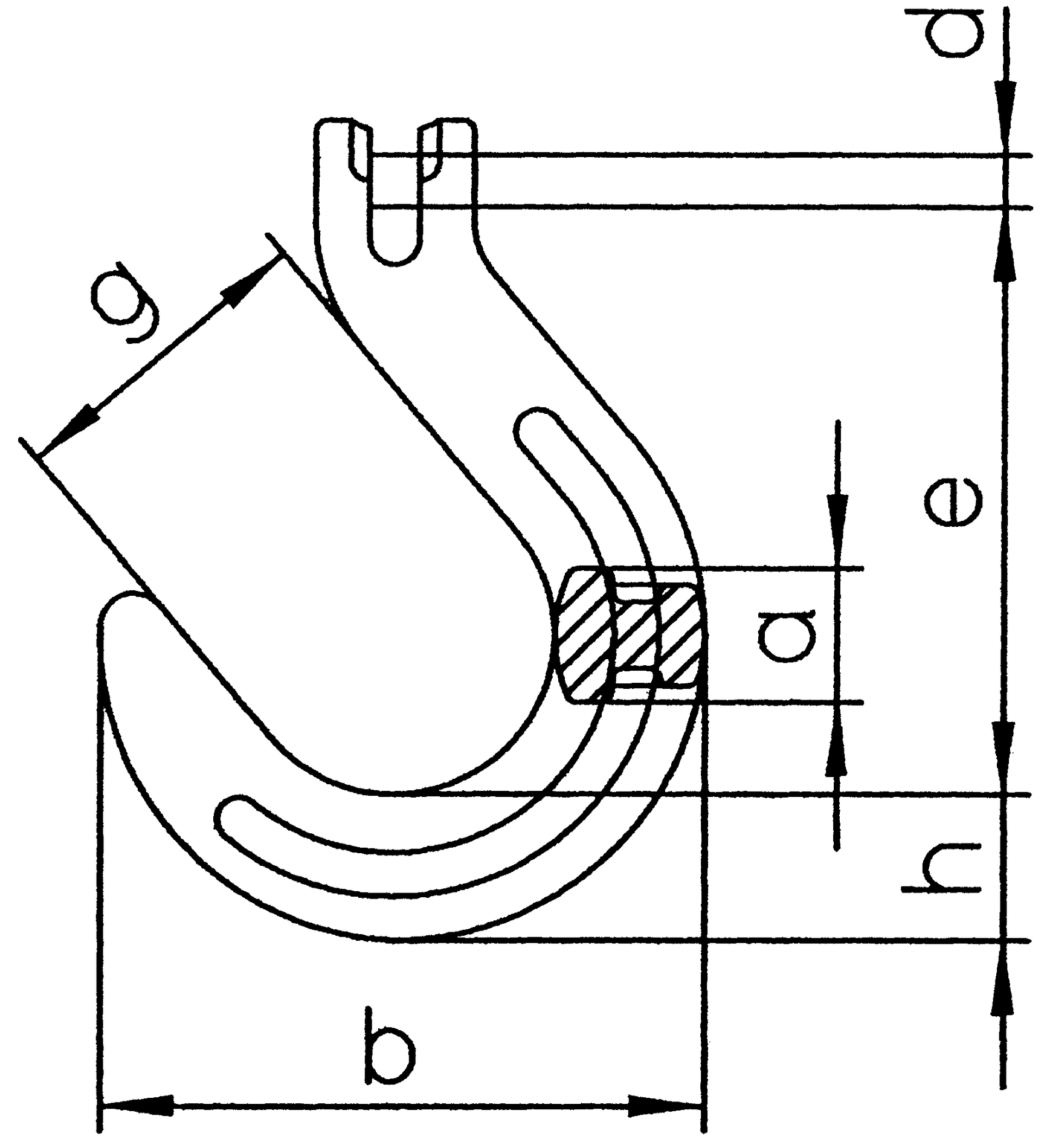

Part Code Code WLL
ton
for chain ø
mm
A
mm
B
mm
D
mm
e
mm
g
mm
h
mm
Weight
kg
11.1113313 GHK/S-8-10 2.5 8 25 118 10 120 64 29 1
11.1113314 GHK/S-10-10 4 10 32 143 13 140 76 35 1.8
11.1113315 GHK/S-13-10 6.7 13 40 170 16 170 89 42 3
