KWB

General: Application for shortening of chain.

  • Material: Alloy steel.
  • Marking: CE-marked
  • Temperature range: -40°C up to 380°C
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 10
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button

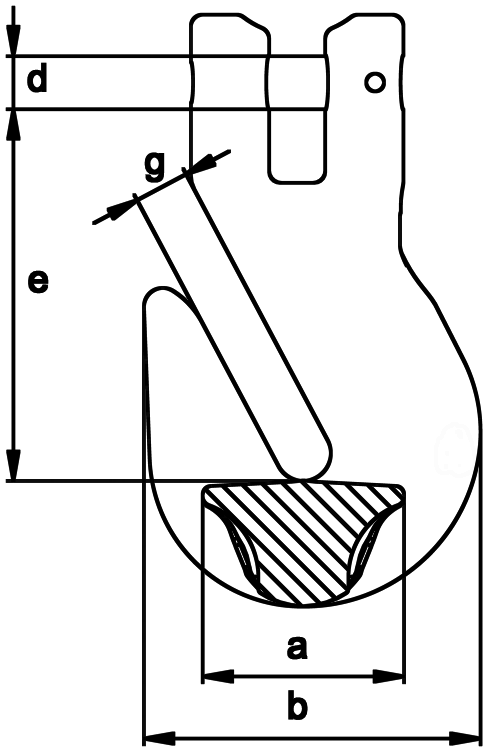

Part Code Code WLL
ton
for chain ø
mm
e
mm
b
mm
d
mm
g a
mm
Weight
kg
11.2136238 PK/S-6 1.4 6 47 42 7.4 7 26 0.17
11.2136725 PK/S-7 1.9 7 63 56 9 7 26 0.44
11.2136787 PK/S-8 2.5 8 63 56 10 9 35 0.44
11.2136809 PK/S-10 4 10 78 70 12.5 12 46 0.85
11.2136813 PK/S-13 6.7 13 93 92 16 15 60 1.75
11.2137052 PK/S-16 10 16 115 113 20 19 70 3.3
11.2169971 PK/S-19-20 16 19-20 141 150 24 25 84 6.15
11.216998 PK/S-22 19 22 158 165 27 27 91 9
