General: For vertical lifting and transporting of steel plates. The STS lifting clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered. The clamp is locked in closed as well as in open position. Type STS has larger jaw opening.






2).

  • Marking: Working load limit, jaw capacity and CE-marking.
  • Finish: Yellow painted.
  • Note: Min. load is 10% of WLL.
  • Safety factor: 5:1.
TS_HR
TS_m2
TS_m3
TS_m
Select a row from the table below, then click the add to quote button

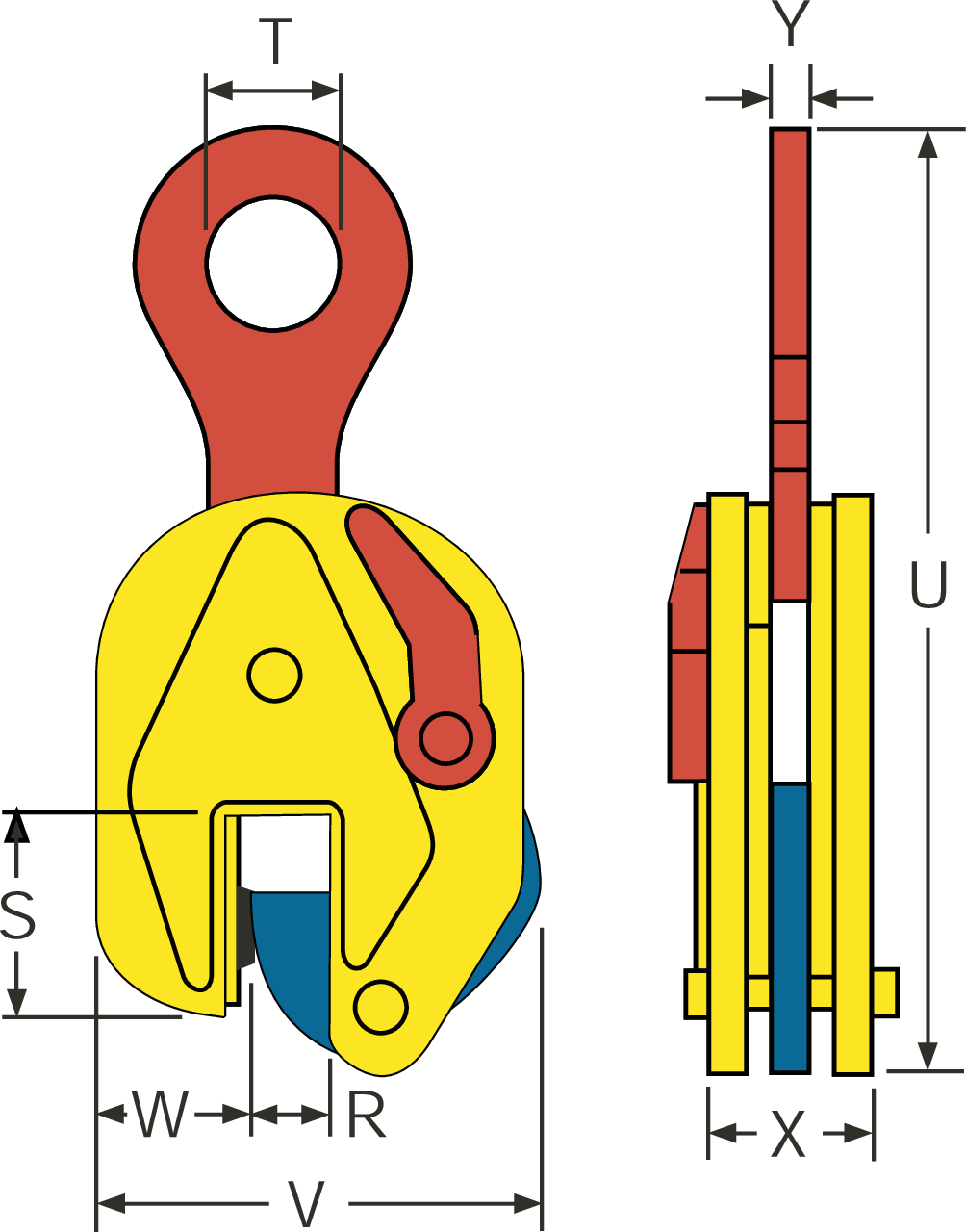

Part Code Code WLL
ton
Jaw width
mm
X
mm
Y
mm
S
mm
T
mm
U
mm
V
mm
W
mm
Weight
kg
16.01852200 6 STS 6 40-90 78 20 114 75 486 275 70 21
16.01854300 7.5 STS 7,5 50-100 86 20 111 75 524 312 70 26,5
16.01853305 9 STS 9 50-100 86 20 111 75 522 312 70 27,5
16.01852401 12 STS 12 50-100 94 44 152 85 615 344 100 41
16.01921500 15 STS 15 80-150 106 49 224 86 800 450 136 76
16.01922000 20 STS 20 80-150 140 66 249 100 924 640 153 160
16.01922500 25 STS 25 80-150 140 66 249 100 924 640 153 160
16.01923000 30 STS 30 80-150 142 66 249 100 906 645 156 165,5
