Eye terminals for pressing or swaging onto stainless steel wire rope. They are mainly used as an attachment to rigging screws or forks.

  • Material: Stainless steel AISI 316.
  • Marking: logo, wire size and swage depth.
  • Temperature range: -50°C to +100°C and briefly up to +200°C
  • Finish: High polished.

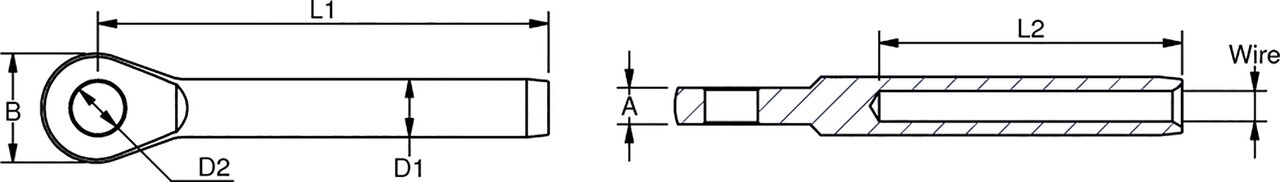

Stainless eye terminal_dwg
Select a row from the table below, then click the add to quote button
Part Code MBL Wire Ø
inch
Wire Ø
mm
Packing Qty. A
mm
B
mm
D1
mm
D2
mm
L1
mm
L2
mm
Weight
kg/100pc
10.07190002 1.2 1/16” 2 100 3 12 5,5 5,5 41 24 0.9
10.07190003 1.3 1/8” 3 100 4 14 6,35 6,5 60 38 1.3
10.07190004 1.7 5/32” 4 100 5 17 7,5 8,5 67 45 2.3
10.07190005 2.4 3/16” 5 25 6 21 9,0 10,5 79 51 3.9
10.07190006 5.5 - 6 10 8 25 12,58 13,0 94 64 8.7
10.07190006X 5.5 - 6 10 10 28 12,58 13,2 105 64 11.2
10.07190007 6.8 9/32” 7 10 9 27 14,2 13,0 104 70 11.5
10.07190007X 6.8 9/32” 7 10 10 28 14,2 13,2 110 70 13.5
10.07190008 8 5/16” 8 10 10 30 16,0 14,5 124 83 17
10.07190008D 4.6 5/16” 8 10 10 30 13,0 14,5 123,5 83 13.5
10.07190008X 8.7 5/16” 8 10 12 36 16,0 16,5 141 83 23.5
10.07190010 9.7 - 10 10 11 35 17,8 16,3 137 89 25
10.07190010X 9.7 10 10 16 40 17,8 19,5 165 100 38
10.07190012 11.4 - 12 5 15 40 20,0 19,3 156 105 41.5
10.07190012X* 14.2 - 12 5 15 42 21,4 19,3 178 120 41
10.07190014 15.9 - 14 5 18 47 25,0 23,0 206 140 75.6
10.07190016 19 - 16 5 20 53 28,0 26 232 160 102
10.07190019 31 - 19 BULK 25 65 34,5 28,5 302 200 209
10.07190022 42 - 22 BULK 30 70 40,4 33,0 348 230 314
10.07190025 1 3/32” 2.5 100 3 12 5,5 5,5 44 27 0.8
10.07190026 53 - 26 BULK 30 77 46,0 36,0 400 280 425
* Note: Terminal OD = 21,4
