This swivel hoist ring rotates through 360° and pivot 180°, and simultaneously allows lifting  from any direction.

  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • Quick and simple assembly, just a tapped hole is required.
  • Material: Forged alloy steel, quenched and tempered
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

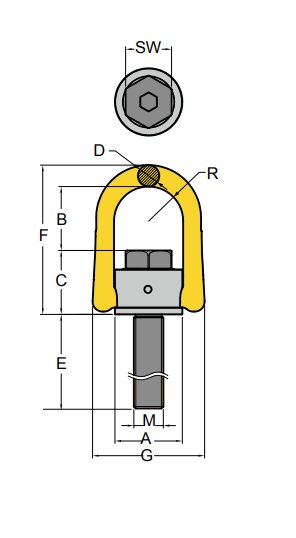

Part Code WLL
ton
Torque
Nm
Thread
M
mm
Thread length (E)
mm
Pitch DIN13 A
mm
B
mm
C
mm
D
mm
F
mm
G
mm
H
mm
R
mm
S
mm
SW
mm
Weight
kg
11.428-231-005/105L 0.5 30 M 8 83 1.25 33 42 28 11 80 58 23 17 6 13 0.3
11.428-231-007/125L 0.7 60 M 10 103 1.5 33 41 29 11 80 58 23 17 6 17 0.4
11.428-231-010/150L 1 100 M 12 128 1.75 33 40 31 11 80 58 23 17 8 19 0.4
11.428-231-020/185L 2 150 M 16 149 2 50 54 46 17 117 90 36 27 10 24 1.1
11.428-231-030/230L 3 250 M 20 194 2.5 50 52 49 17 117 90 36 27 12 30 1.4
11.428-231-050/265L 5 400 M 24 221 3 72 81 59 25 163 125 44 37 14 36 3.2
11.428-231-078/340L 7.8 500 M 30 278 3.5 87 94 81 30 204 148 62 46 17 46 6.3
11.428-231-125/300L 12.5 1,000 M 36 225 4 110 112 98 36 247 188 75 57 22 55 10.9
11.428-231-156/350L 15.6 1,500 M 42 268 4.5 110 101 108 36 247 188 83 57 24 65 13.9
11.428-231-200/385L 20 2,000 M 48 303 5 110 97 113 36 248 188 83 57 27 75 14.7
