Welded Master Link designed for 1-2 legs Wire Rope and Chain Slings. The engineered flat makes it simple to insert wire rope thimbles on our links. Suitable for omega links.
At least 25% greater WLL than traditional Grade 8 products.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Tempering temperature at a minimum of 400°C.

  • Material: Quenched and Tempered Alloy Steel.
  • Marking: According to standard, CE-marked, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Proof Load
kN
WLL β 0-45°"
ton
For Grade 100 Chain
mm
For Grade 100 Chain
mm 1-leg

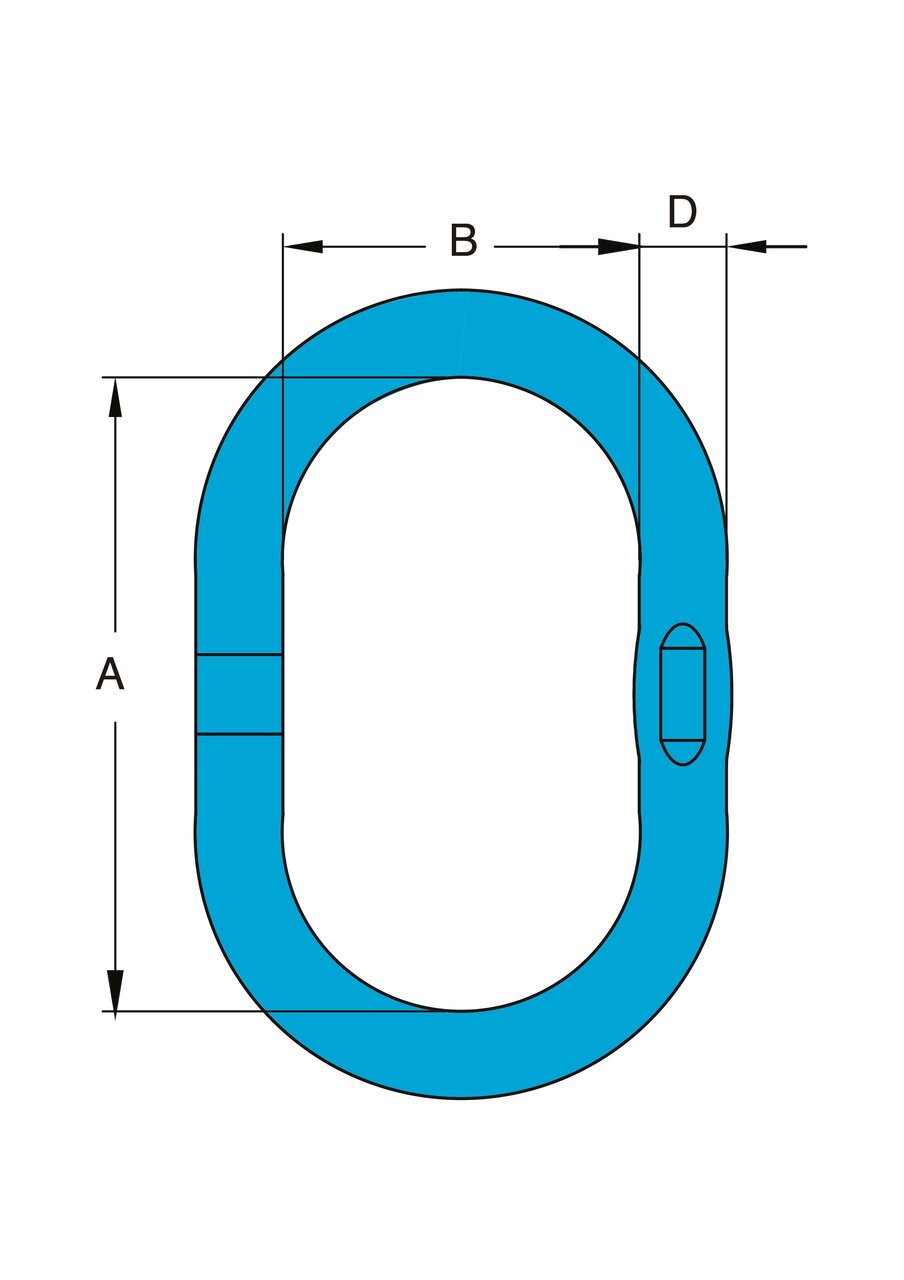

A
mm
B
mm
D
mm
Weight
kg
11.02X-002-60 BD-60 64 1,568 64 32 400 200 60 27
11.02X-002-70 BD-70 85 2,083 85 460 250 70 43
11.02X-002-13 BD-13 2.8 69 2,8 6 7,8 110 60 13 0.3
11.02X-002-16 BD-16 4 98 4 7,8 10 110 60 16 0.5
11.02X-002-19 BD-19 6.7 164 6,7 10 13 135 75 19 0.9
11.02X-002-22 BD-22 8.5 208 8,5 10 13 160 90 22 1.5
11.02X-002-28 BD-28 11.5 282 11,5 13 16 180 100 28 2.7
11.02X-002-32 BD-32 17 417 17,0 16 20 200 110 32 3.9
11.02X-002-36 BD-36 25.1 615 25,1 20 22 260 140 36 6.3
11.02X-002-45 BD-45 38.3 938 38,3 22 26 300 180 45 11.8
11.02X-002-50 BD-50 45 1,103 45,0 28 32 300 200 50 15.2
