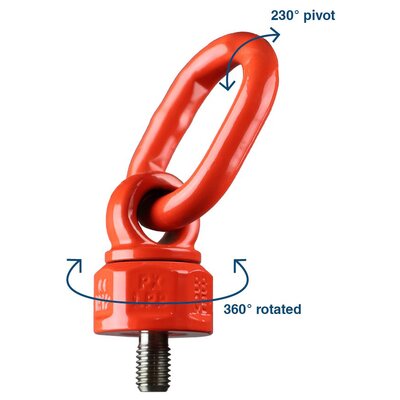

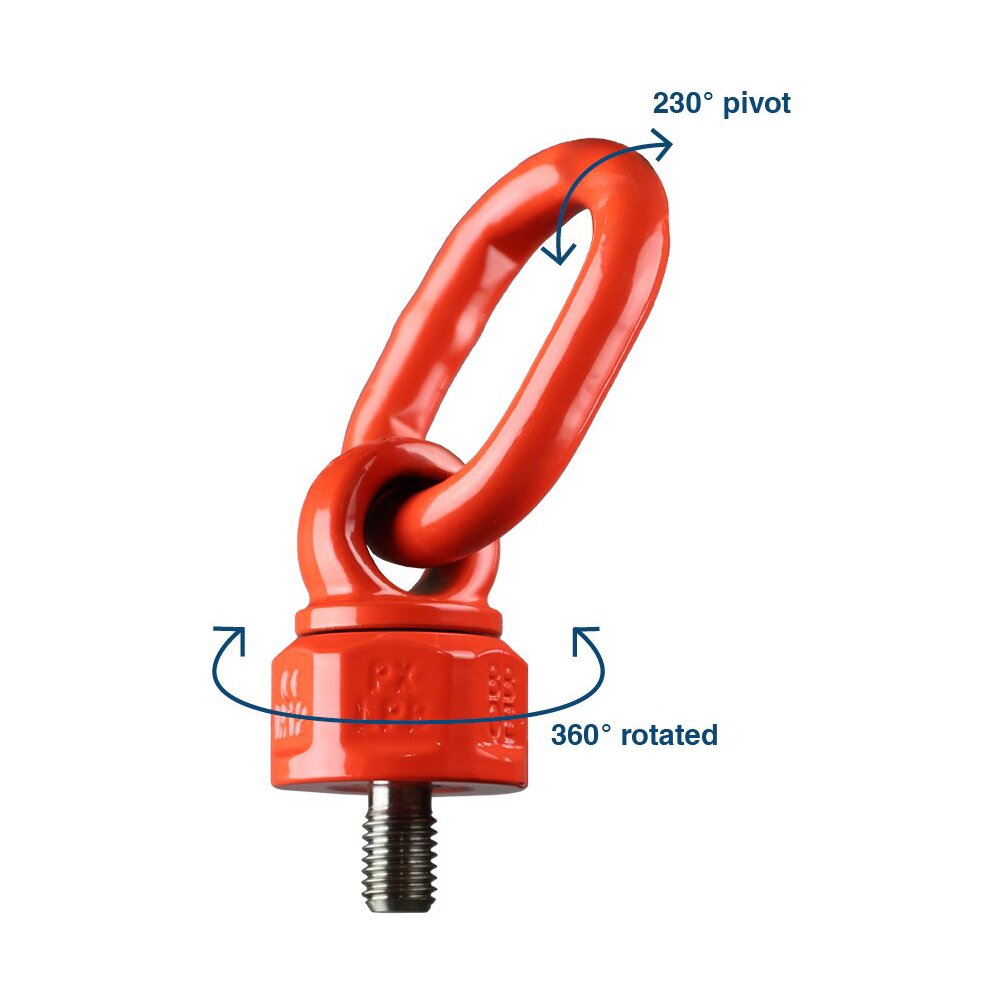

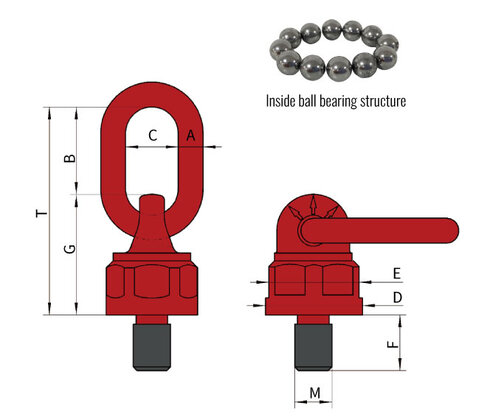

The Powertex LPB lifting point with ball bearing is a 360° rotating and ±115° pivoting lifting point for industrial lifting applications. Its integrated ball bearing allows smooth rotation under load, while the forged housing with hexagon-shaped grip supports straightforward mounting using standard tools.
Best used for
- Lifting applications requiring rotation or changing load directions.
- Applications where smooth rotation under load is required.
Product benefits
- Ball bearing enables smooth 360° rotation under load.
- ±115° pivot motion accommodates changing load directions.
- Hexagon-shaped forged housing enables mounting with standard tools.
- The WLL chart allows a higher WLL for straight vertical loading.
- Tested in accordance with EN 1677-1 and AS 3776 requirements.
- Each lifting point is crack-detection tested, and production samples are proof-load tested. The product design is fatigue-tested to 20,000 cycles at 1.5 times the WLL.
- The traceability code links components to the production lot and to the raw materials.
- Full WLL from -40°C to +200°C, with reductions at higher temperatures.
- Marking: According to standard, CE-marked, UKCA-marked
- Standard: EN 1677-1
- Safety factor: 4:1
