• Rotates through 360° adjustable in the direction of the load.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Passed 150 kg dynamic fall testing ( EU standard is 100 kg).
  • Meets all requirements of the German BG BAU ( Employer’s insurance association of the building industry).
  • Acc. to DIN EN 365 including statement for the number of load bearing persons is 1-2 persons.
  • Corresponds to the European Directive for “personnel protection equipment” (89/686/ EWG).
  • Suitable for permanently outdoor application.
  • PSA-INOX Lifting point to be as an anchor point for personal protective equipment.
  • Material: forged stainless steel.
  • Marking: According to standard
  • Standard: EN 795, EN 50308
Select a row from the table below, then click the add to quote button

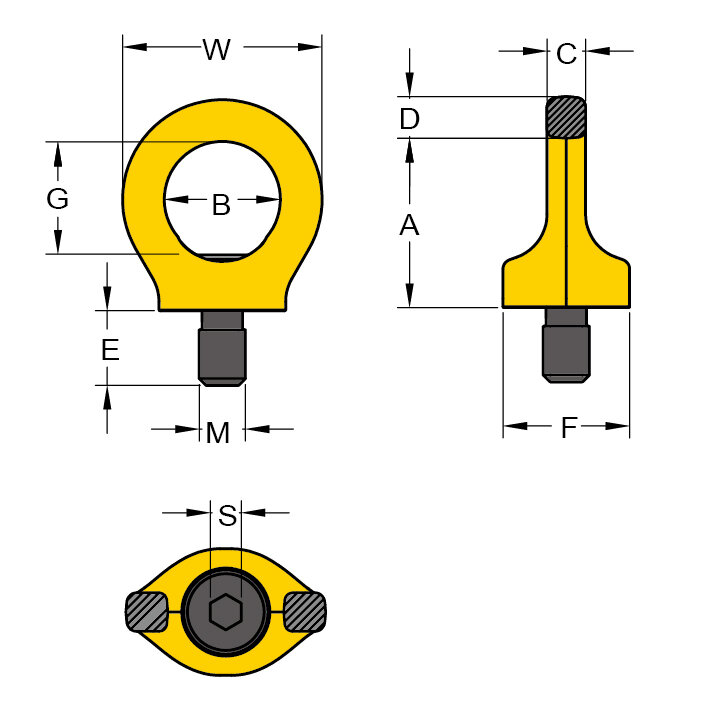

Part Code Torque
Nm
Max. number of persons Thread
M
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
S
mm
W
mm
Weight
kg
19.108-285-007 10 1 M12 x 1,75 45 30 10 11 18 33 29 8 52 0.2
19.108-285-015 30 2 M16 x 2 52 35 14 13 24 35 34 10 61 0.3
19.108-285-023 70 2 M20 x 2,5 60 40 16 15 30 44 37 12 70 0.6
