Starcon

The STARCON lifting eye is a special steel component made for concrete casting. The sperical claw grips on to the head below the STARCON head anchor. The STARCON lifting eye has been tensile tested with 2 times of the safe load. All test results will be reported. Each STARCON lifting eye is marked with article number, identification number and load group. Unique certifcates are made for each delivery.
Standard: CEN15728 / BV-BS 6205.

  • Material: Special alloy steel.
  • Marking: Load group, STARCON, batch code, CE.
  • Temperature range: 200°C.
  • Finish: Electrogalvanized (yellow).
  • Safety factor: 4:1
Product Image 2
Select a row from the table below, then click the add to quote button

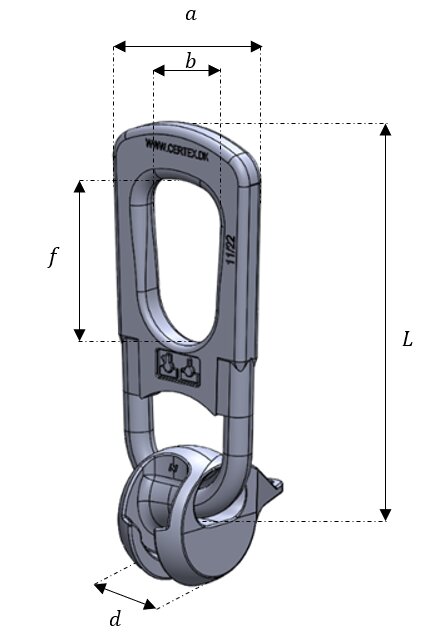

Part Code Load grp. L
mm
f
mm
W2 A
mm
Weight
kg
99.11590080B 1.0 - 1.3 190 70 55 11 0.9
99.11590081B 1.5 - 2.5 215 70 56 16 1.4
99.11590082B 3 - 5 270 85 69 21 3.4
99.11590083B 7.5-10 365 115 90 30 9.1
99.11590084B 12.0 - 20.0 506 135 106 41 21
99.11590085B 32 661 189 164 52 46.5
