Nemag

The pear socket type S is specially designed for and the breakingload is related to steel wire ropes with a smaller diameter that have a higher breaking load. Such as 8 strand and/or compacted wire ropes.

  • Material: High grade casted steel.
  • Marking: Manufacturers logo, size and batch number.
  • Warning: The specified capacities shown are for grab operation. For other applications use safety factor 5:1
  • Safety factor: 5:1
linparon

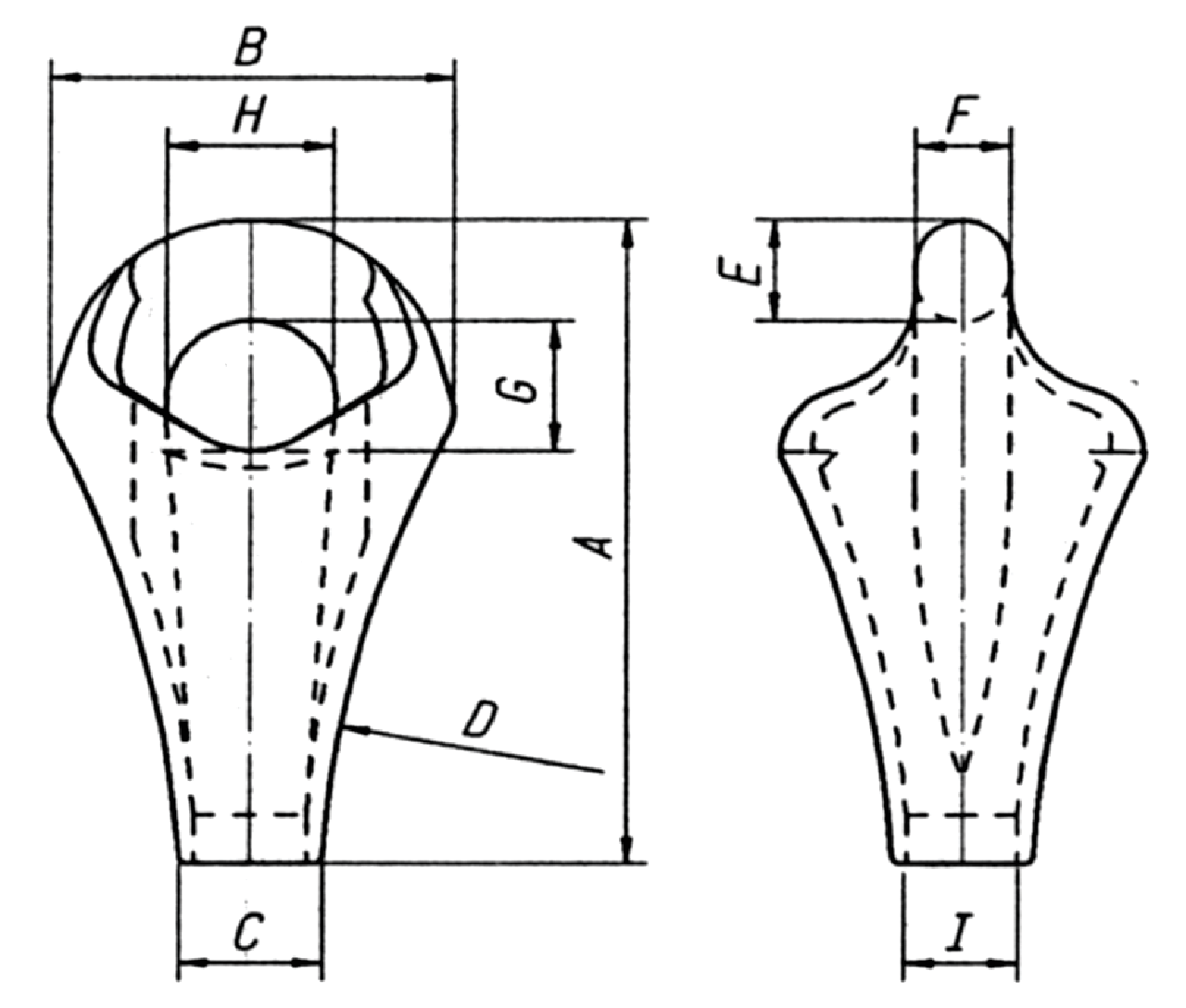

Nemag rope pear socket dwg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
MBL Rope diameter
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
Weight
kg
10.10NRPSS1026 RPS-1026 13 85 25-27 212 143 43 375 35 30,5 43 60 32 4.8
10.10NRPSS1130 RPS-1130 15 95 28-30 239 156 45 400 36 31,5 50 70 35 5.9
10.10NRPSS1232 RPS-1232 17 110 31-33 249 165 52 450 39 34,5 57 72 38 7
10.10NRPSS1336 RPS-1336 21 125 34-36 285 184 62 450 43 36,5 60 80 42 9.3
10.10NRPSS1440 RPS-1440 26 155 37-40 297 192 60 475 47 40 62 80 46 11.6
10.10NRPSS1548 RPS-1548 30 180 46-48 329 192 67 575 51 44 66 80 57 12.4
10.10NRPSS1648 RPS-1648 36 215 46-48 343 218 70 500 56 50 75 90 54 15
10.10NRPSS3221 RPS-3221 32.5 189 42-44 314 204 66 425 53 46 70 80 49 13.8
10.10NRPSS924 RPS-924 11 70 22-24 192 133 40 325 31 27 40 58 29 3.8

* Working load is max. working load for grabbing operations.
For other operations apply the min. safety factor 5.

Combination of the Nemag Rope Pear Socket type S with Nemag Quick Release Link.

A Rope Pear Socket can be fitted to a Quick Release Link of the same size, or to a link with a different size as indicated in table

Pear code: Link code:
RPS-924 RL-8 / RL-9 / RL-10
RPS-1026 RL-9 / RL-10 / RL-11
RPS-1130 RL-10 / RL-11 / RL-12
RPS-1232 RL-11 / RL-12
RPS-1336 RL-12 / RL-13 / RL-14
RPS-1440 RL-13 / RL-14 / RL-15
RPS-1548 RL-14 / RL-15
RPS-3221 RL-15
RPS-1648 RL-15 / RL-17
