European quality short link chain approved for lifting and lashing.

  • Marking: According to standard, At least every 20th link, or at least one link per meter.
  • Temperature range: -40°C up to +200°C.
  • Finish: Painted.
  • Standard: EN 818-2
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

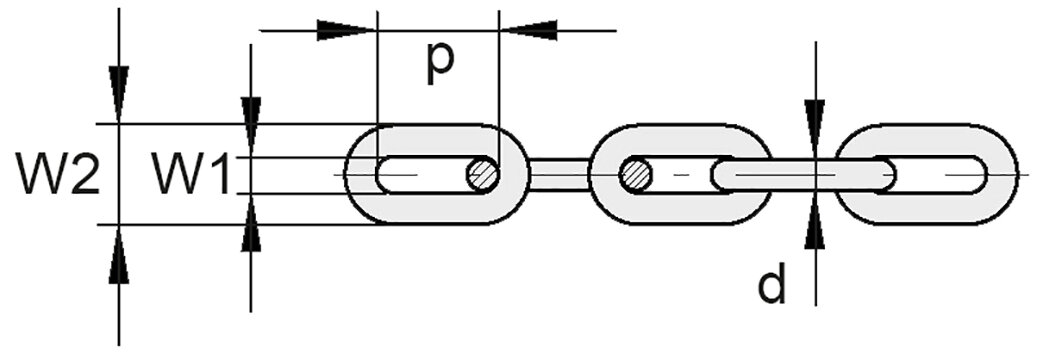

Part Code Chain diameter
mm
WLL
ton
Min. breaking force
kN
Pitch P
mm
Inside width w1 min
mm
Outside width w2 max
mm
Weight
kg/m
11.6531727180405017 5 1 39,3 15 6,5 18,5 0,56
11.6531727180406017 6 1,4 56,5 18 8,5 22,2 0,9
11.6531727180407017 7 1,9 77 21 9,1 25,9 1,2
11.6531727180408017 8 2,5 101 24 11 29,6 1,6
11.6531727180410017 10 4 157 30 13,5 37 2,5
11.6531727180413017 13 6,7 265 39 16,9 48,1 4,2
11.6531727180416017 16 10 402 48 20,8 59,2 6,2
11.6531727180419017 19 14 567 57 24,7 70,3 9
11.6531727180420017 20 16 628 60 26 74 10
11.6531727180422017 22 19 760 66 28,6 81,4 11,9
11.6531727180426017 26 26,5 1 060 78 33,8 96,2 16,3
11.6531727180432017 32 40 1 610 96 41,6 118 24,3
