General: Ship wedges model W.
Ship wedges are positioned underneath a ship section during the construction or repair.
They facilitate launching the vessel after the works have been completed.


- Robust; resistant to continuous heavy operating conditions.
- Can be used close to welding works.
- Low maintenance.

  • Features: - Unloads in one go with maximum load.
Product Picture 1
Product Picture 2

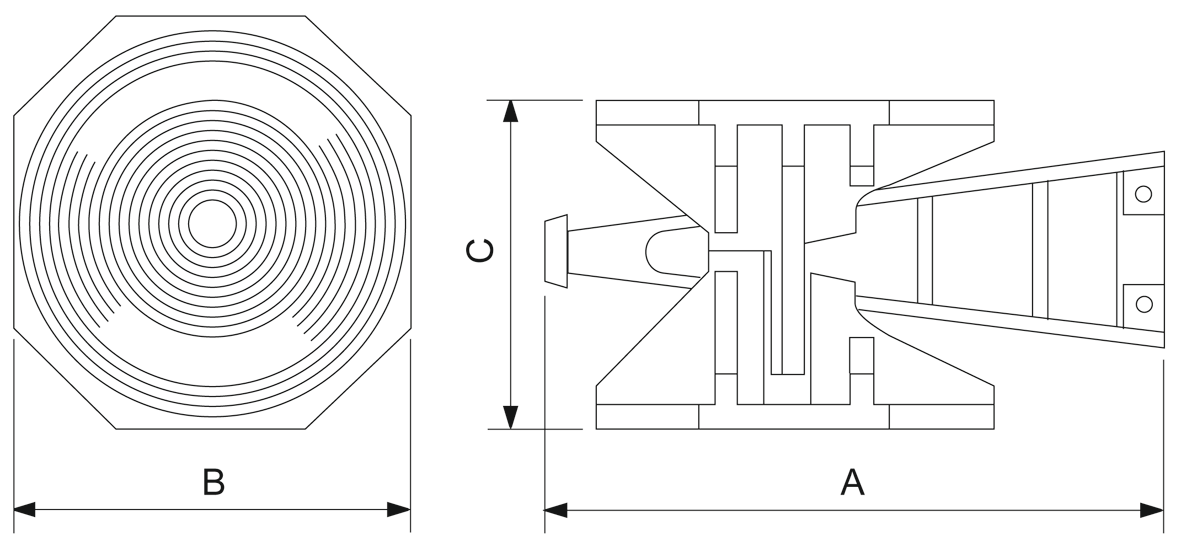

Product Drawing
Select a row from the table below, then click the add to quote button
Model Capacity
kN/t
Max. height
mm
min height mm
mm
A
mm
B
mm
C
mm
Weight
kg
W50 490.5 / 50 225 200 390 255 200 29
W80 784.8 / 80 340 275 570 345 275 64.5
