Starcon

The STARCON Lifting Eye is a special steel component made for concrete casting. The sperical claw grips on to the head below the STARCON head anchor. The STARCON lifting eye has been tensile tested with 2 times of the safe load. All test results will be reported. Each STARCON lifting eye is marked with article number, identification number and load group. Unique certifcates are made for each delivery.
Max. working temperature: 200°C.
Surface: Electrogalvanized (yellow).
Standard: CEN15728 / BV-BS 6205.

  • Material: Special alloy steel.
  • Marking: Load group, STARCON, batch code, CE.
  • Safety factor: 4:1

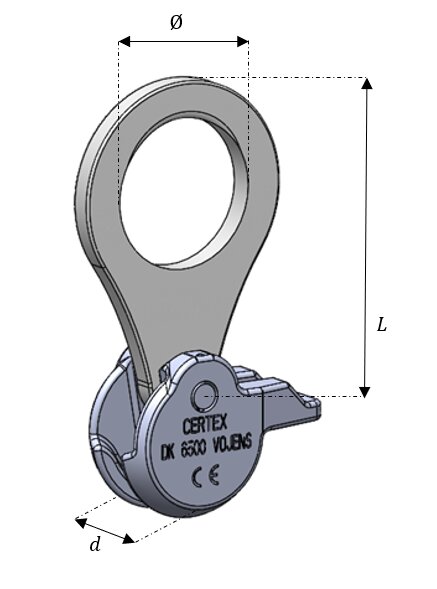

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
Load grp. L
mm
A
mm
B
mm
C
mm
D
mm
Weight
kg
99.112010131 42 1-1.3 130 11 9 9,6 31 0.59
99.112030251 60 1.5-2.5 165 16 11 12,4 35 1.01
99.112050501 62 3-5.0 200 22 14 15,6 51,5 2.35
99.112101001 100 6-10.0 285 30 22 25,5 69 5.66
99.112202001 120 12-20.0 370 41 28 33 107 13.45
