YOKE snatchblocks are available from 2 tons to 8 tons, for wire rope sizes 8 mm to 19 mm. Supplied with bronze bushings and 4.5”-14” with pressure lube fittings.
Fatigue rated.
Permanent batch codes link to test certificates for easy traceability.
Meets or exceeds all requirements of ASME B30.26 and have ABS type approval.

  • Material: Highest quality tensile steel.
  • Marking: CE-marked, Part number, wire rope size and working load limit.
  • Finish: Yellow and blue painted.
  • Safety factor: 4:1
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button

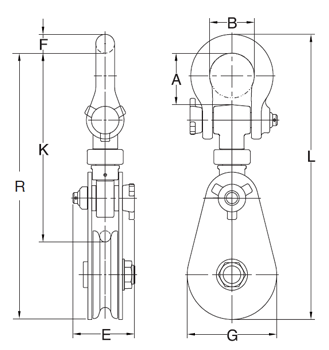

Part Code WLL
ton
Bearing type Sheave dia
inch
Wire ropesize
mm
Replacement sheave A
mm
B
mm
E
mm
F
mm
K
mm
L
mm
G
mm
R
mm
Weight
kg
16.158-501-02 2 BB 3 8-10 8-500-02 35.5 30 - - - 227.6 75 - 2
16.158-501-04 4 BB 4,5 10-13 8-500-04 64 50 79 - - 355.1 107.5 - 6
16.158-501-08 8 BB 6 16-19 8-500-08 87.5 76 105 32 319.3 482.8 152 450.8 13
16.158-501-0808 8 BB 8 16-19 8-500-0808 87.5 76 - - - - 220 - 20
