General: Swivels are essential for the safe and efficient installations of cables, both over and underground. Ball bearing swivels stop torque gradually building by both the pulling equipment and the lay of the cables themselves. The swivels are contoured to allow ease of passage through pulley sheaves. Swivels are an indispensable aid for safe and easy cable laying. The use of double axial bearings makes it possible to neutralise the torsion as required, even under maximum tension.

  • Material: Stainless steel.
    swivel
    Select a row from the table below, then click the add to quote button

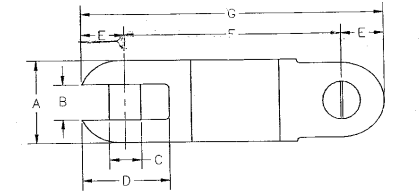

    Part Code Code Diameter
    mm
    Length
    mm
    Clevis gap
    mm
    Supplier partcodeCable grips Weight
    kg
    10.42107183 CGSW-1 15,9 64 7,1 107 183 0,06
    10.42107173 CGSW-2 20 78 7 107 173 0,14
    10.42107174 CGSW-3 22,2 86 9,5 107 174 0,16
    10.42107175 CGSW-4 25,4 95 10,3 107 175 0,23
    10.42107176 CGSW-5 31,8 121 13,5 107 176 0,45
    10.42107177 CGSW-6 34,9 130 14,3 107 177 0,64
    10.42107181 CGSW-7 41,3 152,4 17,5 107 181 1
    10.42107178 CGSW-8 50,8 178 19,8 107 178 1,7
    10.42107182 CGSW-9 60,3 254 26,2 107 182 3,5
    10.42107179 CGSW-10 76,2 330 30,2 107 179 7,7
