• Not for lifting

General: Wire rope clips for steel wire rope for general applications.
Design: Forged u-bolts and casted bases.

  • Marking: According to standard
  • Finish: Electro-Galvanised
  • Standard: DIN 741
  • Note: Follow the fitting instructions in the user manual before use.
  • Warning: Not for lifting

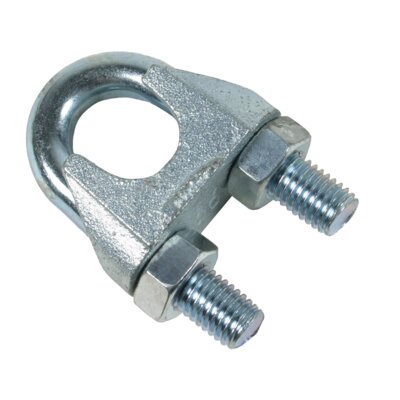

    Galvanized U-bolt wire rope grip
    Wire rope grip U-bolt measurements
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    Weight
    kg/100pc
    10.1574103 3 1,4
    10.1574105 5 1,5
    10.1574106 6 2,1
    10.1574108 8 4,1
    10.1574110 10 6,8
    10.1574113 13 13
    10.1574116 16 21
    10.1574119 19 28
    10.1574122 22 40
    10.1574126 26 44
    10.1574130 30 66
    10.1574134 34 85
    10.1574140 40 104
