Starcon

The STARCON Lifting Eye is a special steel component made for concrete casting. The sperical claw grips on to the head below the STARCON head anchor. The STARCON lifting eye has been tensile tested with 2 times of the safe load. All test results will be reported. Each STARCON lifting eye is marked with article number, identification number and load group. Unique certifcates are made for each delivery.
Standard: CEN15728 / BV-BS 6205.

  • Material: Special alloy steel.
  • Marking: Load group, STARCON, batch code, CE.
  • Temperature range: 200°C.
  • Finish: Electrogalvanized (yellow).
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

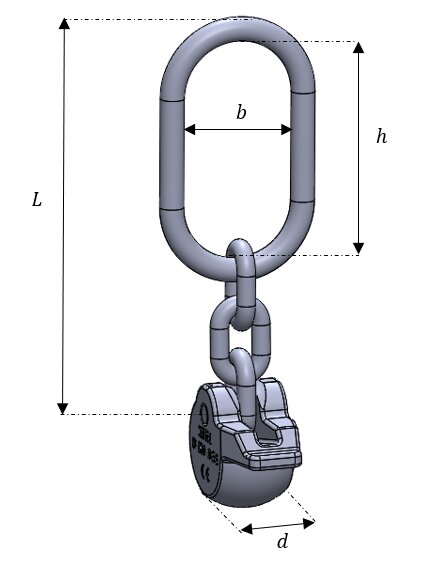

Load grp. Art No Lifter/flexible coupling L
mm
A
mm
B
mm
C
mm
D
mm
H
mm
Weight
kg
1-1.3 99,112,010,133 220 11 50 9,6 31 110 0.59
1.5-2.5 99,112,030,253 255 16 60 12,4 35 120 1.01
3-5.0 99,112,050,503 295 22 60 15,6 51,5 120 2.35
6-10.0 99,112,101,003 455 30 100 25,5 69 200 5.66
12-20.0 99,112,202,003 600 41 120 33 107 250 13.45
