Master Link Assembly X-006

Home / Master Link Assembly X-006

Welded Master Link designed for 3-4 legs Chain, Wire Rope and
Webbing Slings. The engineered flat makes it simple to insert wire rope thimbles on our links. Suitable for omega links.
At least 25% greater WLL than traditional Grade 8 products.
Proof Load tested at 2.5 times the WLL with certification for each
batch manufactured.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Manufactured in accordance with EN 1677- 4 and ASME B30.26.

Material: Quenched and Tempered Alloy Steel.
Marking: According to standard, CE-marked, Type, manufacturer ID, traceability.
Temperature range: -40° up to +200°C (without reduction in WLL).
Finish: Blue painted.
Standard: EN 1677-4

Safety factor: 4:1
Grade: 10

Master Link Assembly X-006

Select a row from the table below, then click the add to quote button

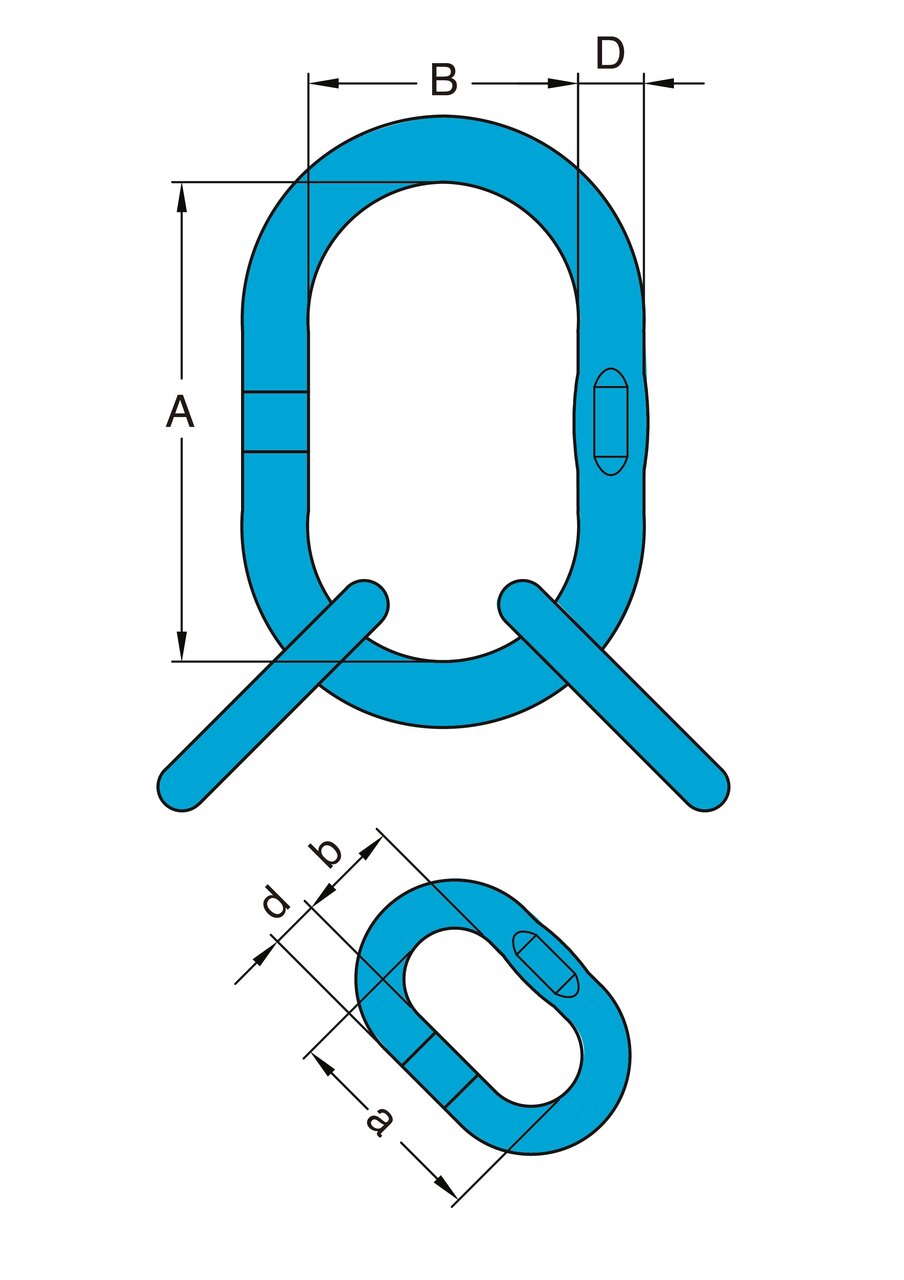

Part Code	Code	WLL ton	Proof Load kN	Can be used up to single hook acc. to DIN 15401	WLL β 0-45°" ton	For Grade 100 Chain 3 and 4-leg mm	D mm	A mm	B mm	d mm	a mm	b mm	Weight kg
11.02X-006-70	BD-70 + 2 DD+50	85	2,083	50	85	32	70	460	250	50	200	100	63.7
11.02X-006-19	BD-19 + 2 DD+13	4.2	103	5	4,2	6	19	135	75	13	54	25	1.3
11.02X-006-22	BD-22 + 2 DD+16	8.2	201	6	8,2	7,8	22	160	90	16	70	34	2.2
11.02X-006-28	BD-28 + 2 DD+19	10.7	262	8	10,7	10	28	180	100	19	85	40	3.9
11.02X-006-32	BD-32 + 2 DD+22	15.7	385	10	15,7	13	32	200	110	22	115	50	6.1
11.02X-006-36	BD-36 + 2 DD+28	22.2	544	16	22,2	16	36	260	140	28	140	65	10.6
11.02X-006-50	BD-50 + 2 DD+32	34.1	835	32	34,1	20	50	300	200	32	150	70	21.2
11.02X-006-501	BD-50 + 2 DD+36	40	980	32	40,0	22	50	300	200	36	170	75	23.8
11.02X-006-60	BD-60 + 2 DD+45	56	1,372	32	56,0	26	60	400	200	45	170	80	41.3
