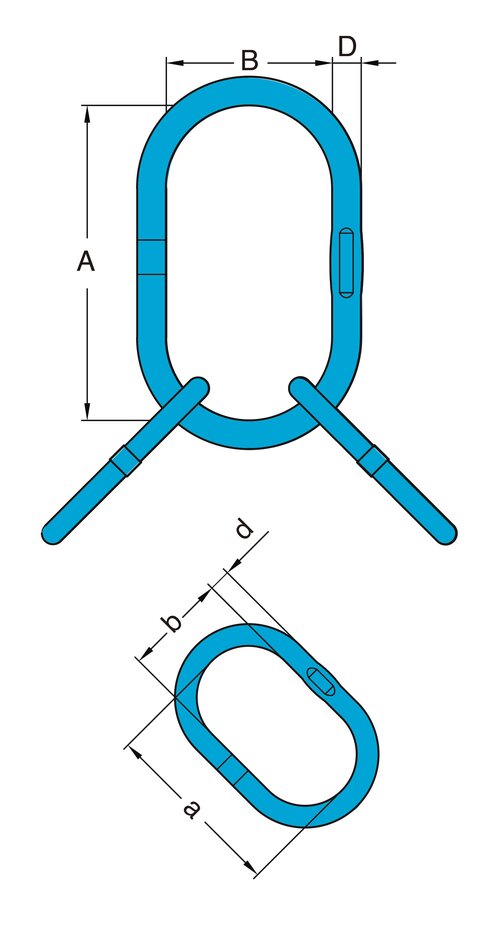

Welded Master Link designed for 3-4 legs Wire Rope and Chain Slings.
At least 25% greater WLL than traditional Grade 8 products.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
- Material: Quenched and Tempered Alloy Steel.
- Marking: According to standard, CE-marked, Type, manufacturer ID, traceability.
- Temperature range: -40° up to +200°C (without reduction in WLL).
- Finish: Blue painted
- Standard: EN 1677-4
- Safety factor: 5:1
- Grade: 10
| Assembled with | ||
| AD-19 | + | 2 AD-161 |
| AD-251 | + | 2 AD-19 |
| AD-28 | + | 2 AD-22 |
| AD-32 | + | 2 AD-25 |
| AD-361 | + | 2 AD-281 |
| AD-40 | + | 2 AD-32 |
| AD-45 | + | 2 AD-36 |
| AD-50 | + | 2 AD-401 |
| AD-60 | + | 2 AD-50 |
| AD-70 | + | 2 AD-601 |
| AD-90 | + | 2 AD-701 |
