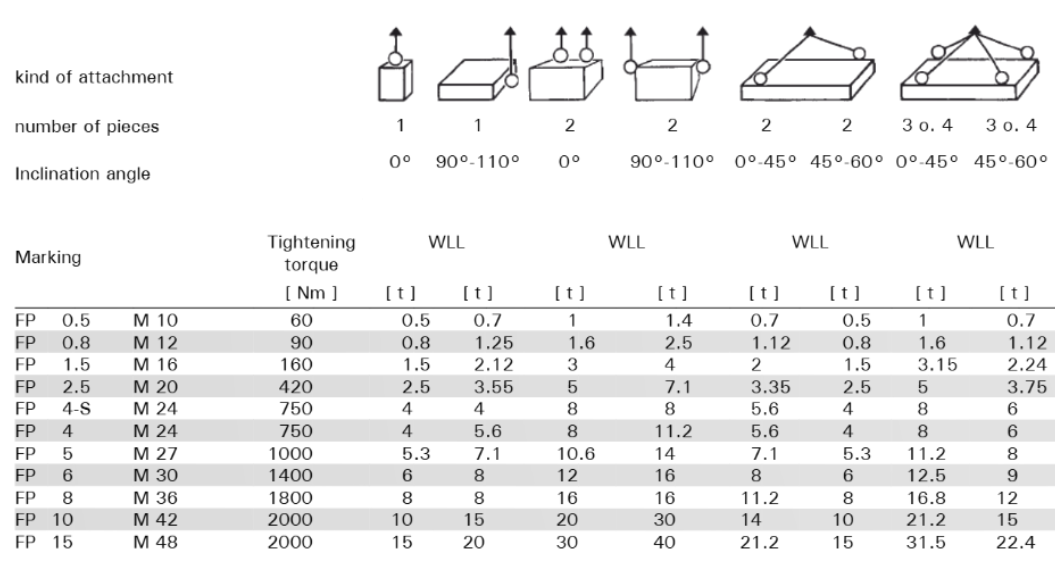

*In the case of an unsymmetrical load distribution, the lifting capacities applicable to the 2 and 3 / 4 –leg slings are the same as for 1-leg types at 0°.

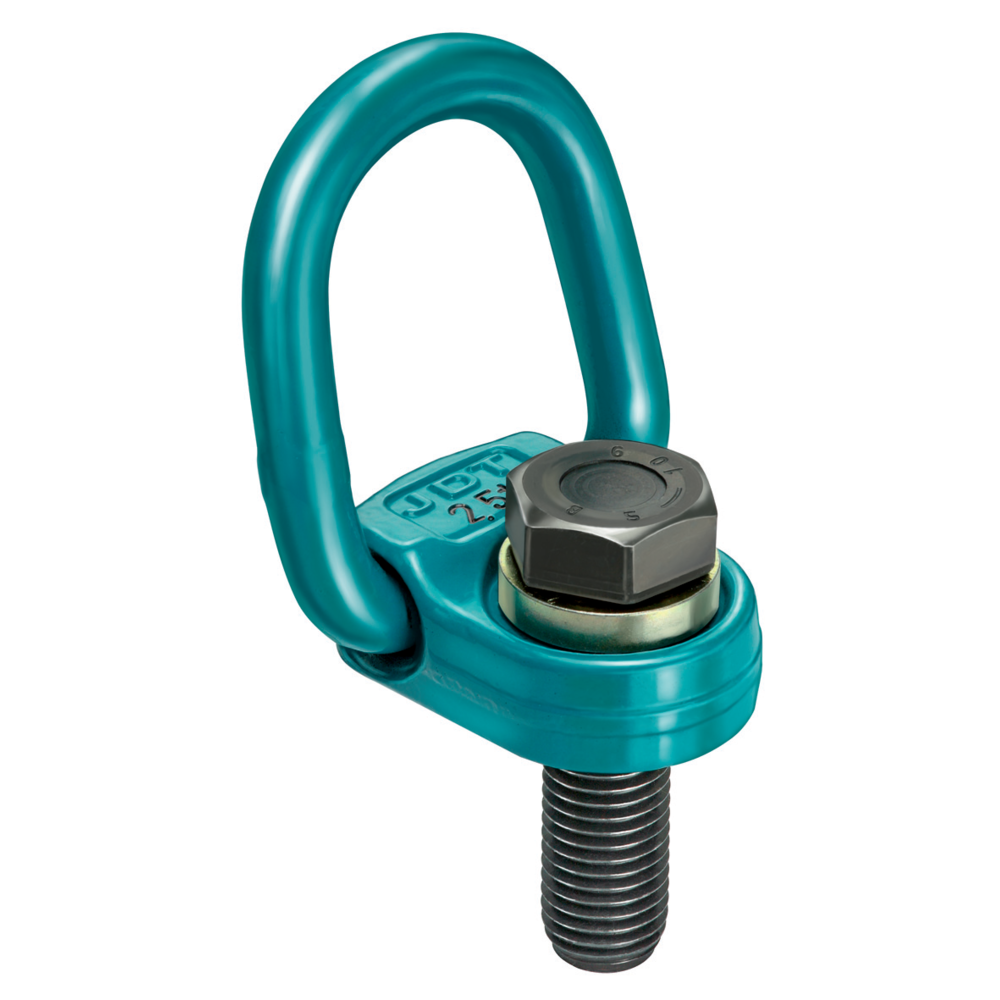

The Flat Point is a rotatable attachment point with screw for lifting and load attachment applications. It is used where a low-profile lifting point is needed with defined WLL values and controlled load orientation.
Best used for:
- Machinery, tooling, and components requiring flat lifting points.
- Applications needing 360° rotation and 110° working range.
Product benefits:
- Flat design supports use where installation height is limited.
- Rotates 360° for easier alignment during lifting.
- Automatically locking link helps maintain controlled positioning.
- Crack-tested 10.9 screw supports documented lifting reliability.
- WLL range from 0.5 to 15 t supports load planning.
- Material: Eye and swivel of alloy steel.
- Marking: CE-marked, UKCA-marked, WLL.
- Finish: Painted.
- Note: The surface that the lifting eyes shall be attatched to shall be flat and tolerate the load it is going to be exposed to.
- Safety factor: 4:1
