Load Ring RUD VRBG-FIX - on Plate for Bolting

Load Ring RUD VRBG-FIX - on Plate for Bolting

Load Ring RUD VRBG-FIX - on Plate for Bolting

E-mail View PDF

Load Ring on plate for bolting.

Split force introduction thanks to multiple point fixing.
Suspension ring can be pivoted through 180°.
WLL possible up to 90° in load ring plane.
Clear indication of the minimum WLL for all loading directions.

Show more

Quantity:

Show all variants

Part code:

Filters & subcategories

Show results

Load Ring on plate for bolting.

Split force introduction thanks to multiple point fixing.
Suspension ring can be pivoted through 180°.
WLL possible up to 90° in load ring plane.
Clear indication of the minimum WLL for all loading directions.

Temperature range: -20ºC up to 100ºC

Safety factor: 4:1

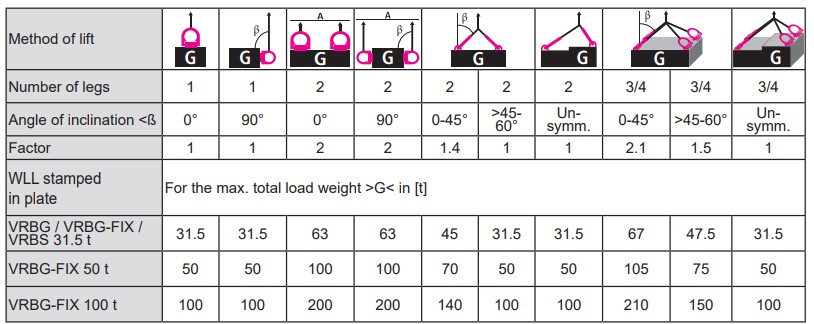

RUD Load table VRBG-FIX
