Wire rope DSC8
Product information
Typical applications: When a high MBL is required for a multipart reeving hoist system: electric hoists, twin hoist systems (right and left ropes), boom hoist and pendant rope for mobile cranes and tower cranes.
Fill factor: 10 mm - 0,74, 11-32 mm - 0,73, 33-50 mm - 0,71.
Standard: EN 12385-4
ISO 4309 Rope Category No: 10mm RCN.04, 11-22mm RCN.09, 24-50mm RCN.11

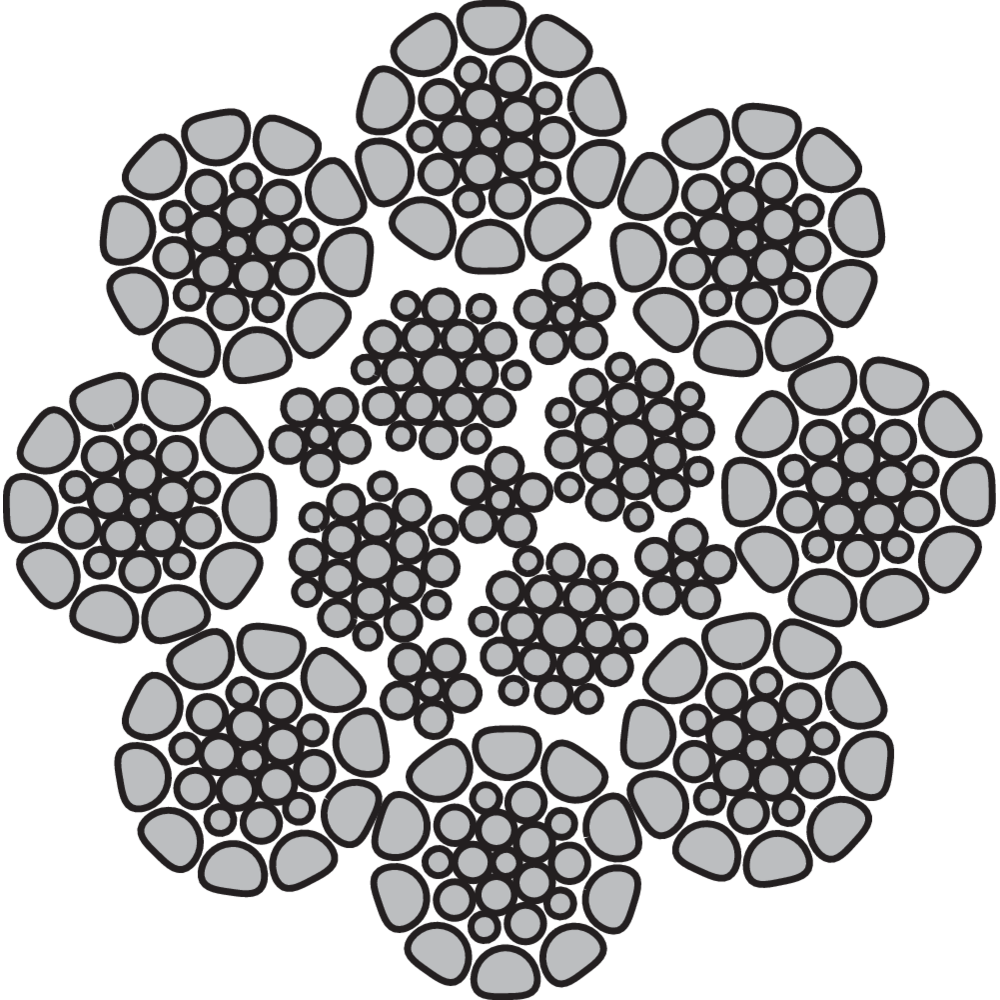

- Rope construction: 8 compacted strands closed in a parallel lay together with the inner core strands.
- Note: Due to its particular full unilay parallel closing (outer/inner strands), this rope is very sensible to the rotation and fleet angle. Cannot be used for big lifting heights, unguided loads a
- RCN: 04
-
Overhead cranes
-
Tower crane
-
Mobile port crane
-
Offshore crane
-
Crawler crane
-
Container crane
Product FAQ
What surface finish and tensile strength does this steel wire rope have?
This steel wire rope has a Bright, Galvanized and is manufactured with a tensile strength of 1960, 2160 N/mm².A bright (uncoated) finish has no corrosion protection and is therefore primarily used in dry, indoor, or controlled environments. Bright wire ropes are generally selected for cost reasons. The galvanized coating provides corrosion protection through a zinc layer, making the rope suitable for outdoor use and humid operating conditions.
Does this steel wire rope have any special design or performance features?
This steel wire rope is compacted, resulting in a smoother surface, higher breaking load, and improved wear resistance compared to standard wire rope constructions.
What is the construction, core type, and lay of this steel wire rope?
This steel wire rope is constructed with 8 strands.
It is manufactured with a steel core, offering higher structural stability, improved resistance to crushing, and reliable performance under heavy loads and multi-layer winding conditions.
It is manufactured with an ordinary right-hand lay (sZ), providing a balanced combination of flexibility, wear resistance, and stable handling. This is the most commonly used lay for general It is manufactured with an ordinary left-hand lay (zS), offering similar performance characteristics to right-hand ordinary lay but designed for specific directional or equipment requirement
