Bridon
  • Right hand langs lay
  • Left hand langs lay
  • Bright
  • Galvanized
  • Compacted strands
  • Rotation resistant
  • Can be used with swivel

Very Low Rotation.
Superior bending fatigue life when compared with conventional low rotation ropes.
Excellent resistance to crushing and abrasion particuarly on multi layer drums resulting from the compacted strands.
Reduced elongation results from increased steel content and the Dyform process.
Plastic impregnation to further extend fatigue life, improve structural stability and resistance to corrosion.

ISO 4309 Rope Category No: 10-40mm RCN.23-2, 42-76mm RCN.31

  • Features: Extremely strong low rotation Crane Hoist Rope.
  • Material: High Carbon Steel
  • Marking: According to standard, CE-marked, On Termination ID
  • Finish: Galvanised or Ungalvanised
  • Standard: EN 12385-4
  • Fill factor: 0.76
Dyform 34LR
Dyform 34LR-PI
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Min. breaking force
kN
1960 N/mm²
Min. breaking force
kN
2160 N/mm²
Weight
kg/100m
01.B3834L100G 10 90,8 95,3 51,4
01.B3834L110G 11 109 115 61,7
01.B3834L120G 12 130 137 72,9
01.B3834L130G 13 153 161 84,6
01.B3834L140G 14 179 191 97,1
01.B3834L150G 15 204 214 114
01.B3834L160G 16 232 251 130
01.B3834L170G 17 262 275 140
01.B3834L180G 18 298 319 159
01.B3834L190G 19 331 356 178
01.B3834L200G 20 370 397 197
01.B3834L210G 21 400 420 222
01.B3834L220G 22 442 482 240
01.B3834L230G 23 480 504 261
01.B3834L240G 24 528 569 286
01.B3834L250G 25 568 595 312
01.B3834L260G 26 618 660 340
01.B3834L270G 27 662 694 356
01.B3834L280G 28 712 758 391
01.B3834L290G 29 764 801 425
01.B3834L300G 30 823 857 445
01.B3834L320G 32 919 1 008 505
01.B3834L340G 34 1 050 1 151 574
01.B3834L350G 35 1 110 1 214 602
01.B3834L360G 36 1 170 1 287 644
01.B3834L380G 38 1 310 1 444 712
01.B3834L400G 40 1 450 1 590 807
01.B3834L420G 42 1 600 1 758 884
01.B3834L440G 44 1 750 1 925 961
01.B3834L460G 46 1 920 1 060
01.B3834L480G 48 2 090 1 150
01.B3834L500G 50 2 270 1 230

Larger sizes available on request.

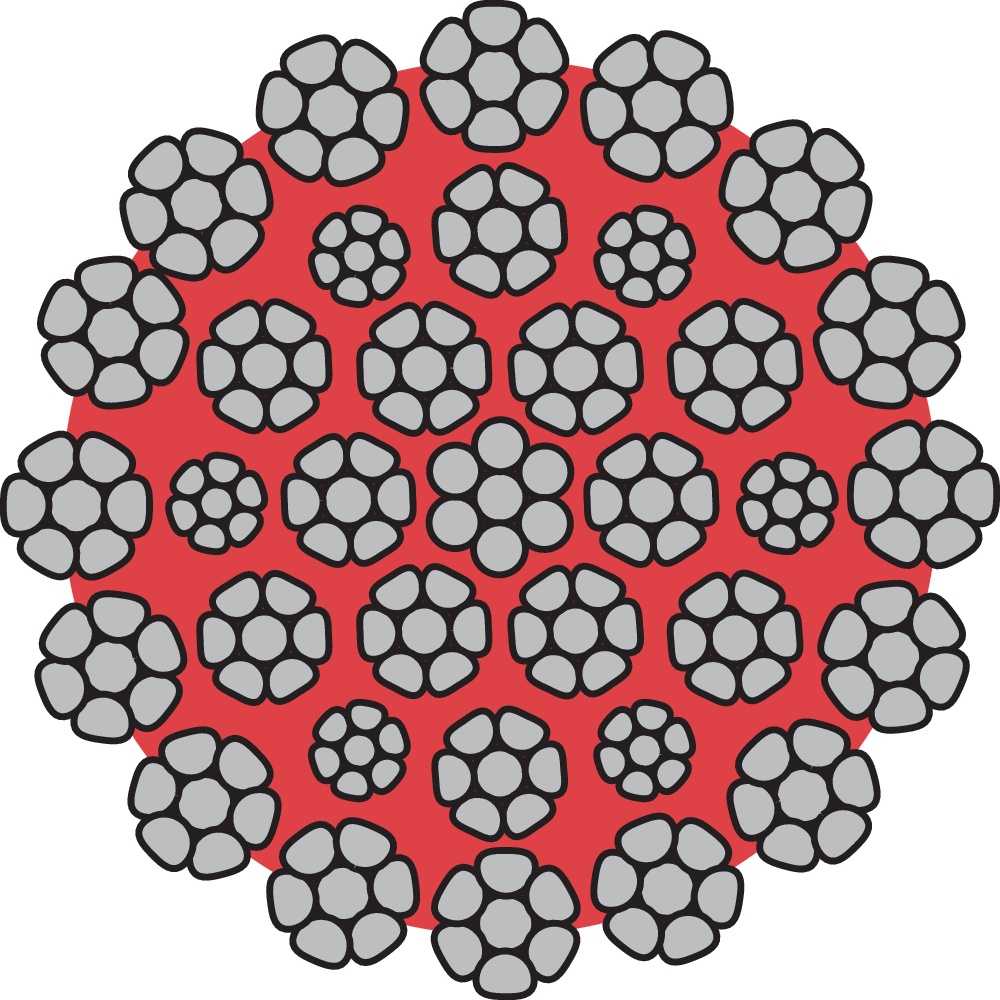

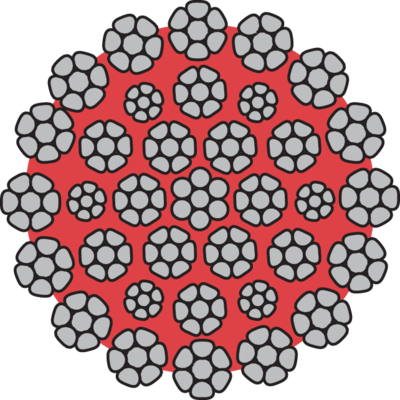

10mm - 40mm
34x7 WSC - Compact Strands
42mm - 68mm
34x19 WSC - Compact Strands
70mm - 76mm
34x31 WSC - Compact Strands
