Ropeblock

General: A revolutianary evolution of the Fast Connector Socket. This socket line has the smallest connector diameter available inthe market today, and still meets the respective EN standards. It has been designed to go through the smallest spaces in a crane reeving system.
This unique patent pending design allows refitting by pouring in the field, saving valuable down time compared to swaging techniques.
The standard finish of our sockets is blue. Hot dipped galvanized is also available.



  • Material: Quenched and tempered cast steel.
    Select a row from the table below, then click the add to quote button

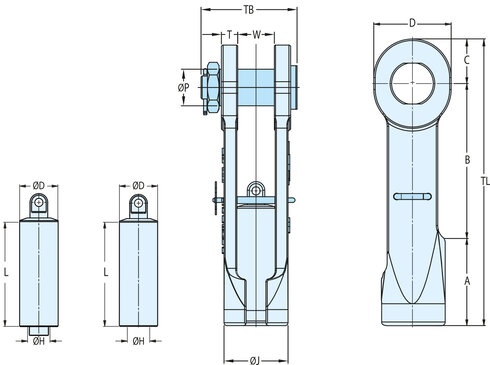

    Part Code Code Rope diameter MBL
    ton
    Finish A
    mm
    B
    mm
    C
    mm
    Ø H
    mm
    Ø P
    mm
    T
    mm
    W
    mm
    D
    mm
    Ø D
    mm
    ØJ mm L
    mm
    TL
    mm
    TB
    mm
    Weight
    10.10SCS902B SCS 902 B 13-16 25 Painted 85 133 32 19 30 14 32 58 32 56 98 250 96 3,1
    10.10SCS902B.GAL SCS 902 B.GAL 13-16 25 Galvanized 85 133 32 19 30 14 32 58 32 56 98 250 96 3,1
    10.10SCS903B.GAL SCS 903 B.GAL 16-19 40 Galvanized 90 160 40 22 35 16 38 70 40 65 114 290 107 4,8
    10.10SCS903B SCS 903 B 16-19 40 Painted 90 160 40 22 35 16 38 70 40 65 114 290 107 4,8
    10.10SCS904B.GAL SCS 904 B.GAL 20-22 55 Galvanized 107 184 45 26 41 19 44 80 44 77 130 336 123 8
    10.10SCS904B SCS 904 B 20-22 55 Painted 107 184 45 26 41 19 44 80 44 77 130 336 123 8
    10.10SCS905B.GAL SCS 905 B.GAL 23-26 75 Galvanized 115 211 60 31 50 22 51 104 52 88 142 386 138 12
    10.10SCS905B SCS 905 B 23-26 75 Painted 115 211 60 31 50 22 51 104 52 88 142 386 138 12
    10.10SCS906B SCS 906 B 27-29 90 Painted 140 215 65 34 57 25 57 114 58 96 159 420 160 16
    10.10SCS906B.GAL SCS 906 B.GAL 27-29 90 Galvanized 140 215 65 34 57 25 57 114 58 96 159 420 160 16
    10.10SCS907B SCS 907 B 30-32 125 Painted 150 260 73 36 63 28 63 126 64 110 177 483 165 23
    10.10SCS907B.GAL SCS 907 B.GAL 30-32 125 Galvanized 150 260 73 36 63 28 63 126 64 110 177 483 165 23
    10.10SCS908B SCS 908 B 33-36 125 Painted 170 260 73 40 64 28 69 126 68 114 197 503 185 25
    10.10SCS908B.GAL SCS 908 B.GAL 33-36 125 Galvanized 170 260 73 40 64 28 69 126 68 114 197 503 185 25
