General:
- Standard Reeve Crane Blocks may be used on a wide variety of land based cranes such as mobile and crawler cranes. They are an excellent choice where frequent block change is required.
- Double sealed maintenance free roller bearings.
- Design Factor of Safety of 4:1.
- Forged high tensile steel DIN hooks.
- Ductile iron sheaves, featuring graphite lubricated groove.
- High impact resistant side plates.
- Operational temperature range -40 up to +80°C.
- Lubrication on hook suspension.
- 4 or 8 point hook locking device.
- Fast reeve guide for fast reeving.
- Safety latch with locking pin.
- C3M finish in signal yellow with black striping.

Options:
- Double hook.
- Double hook with shackle hole.
- Quad hook.
- Shackle stud eye.

Important:
Inquiries for custom versions are welcome!

      Product Picture 1
      Product Picture 2

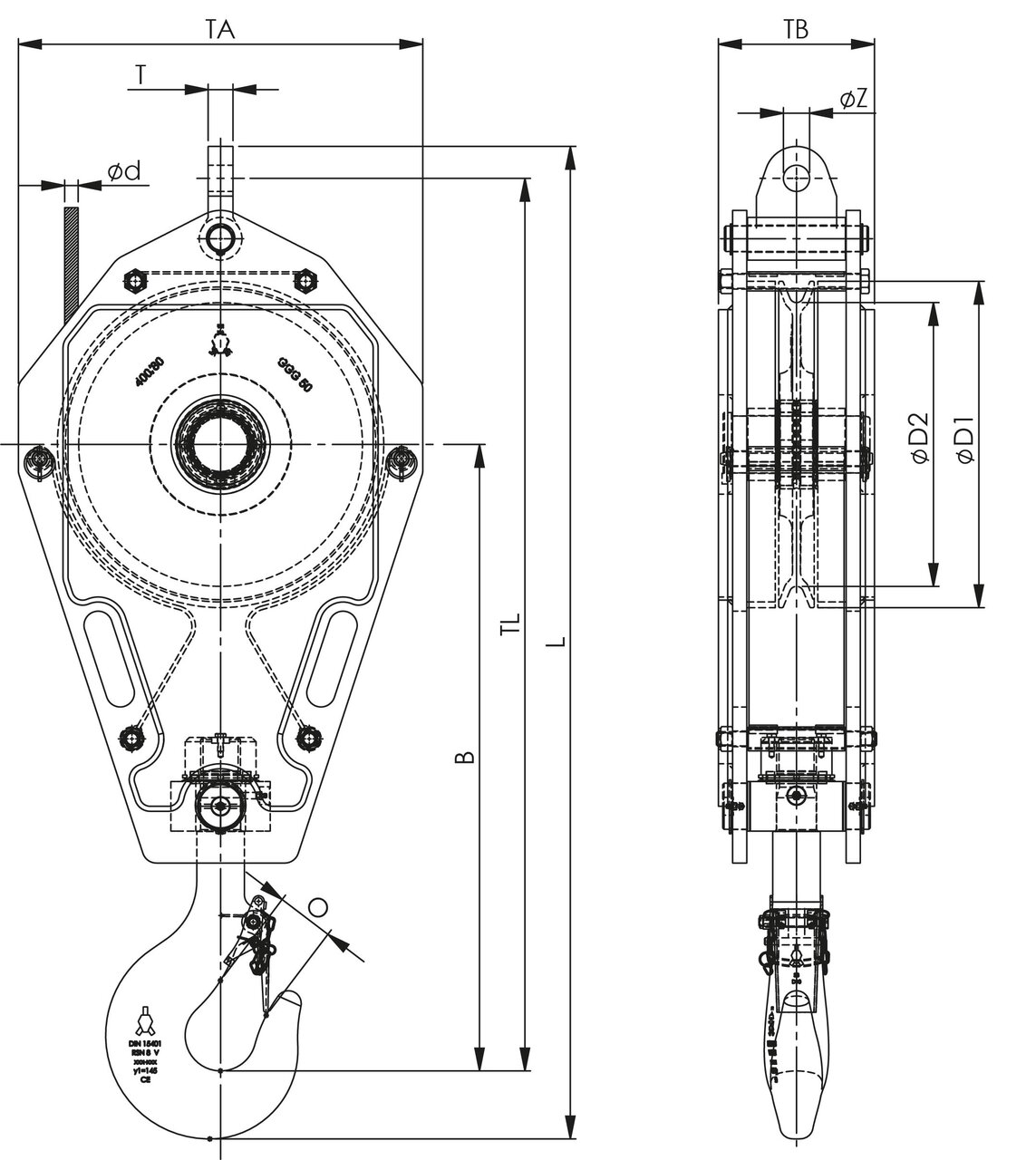

      Select a row from the table below, then click the add to quote button
      WLL
      ton
      Model no. For wire Ø
      mm
      Hooksize Ø D1
      mm
      Ø D2
      mm
      B
      mm
      O
      mm
      TA
      mm
      TB
      mm
      TL
      mm
      L
      mm
      T
      mm
      Ø Z
      mm
      Weight
      kg
      12,5 FRB 225 .14 .1 .12,5 .E 14 4 260 225 588 49 345 170 863 970 28 32 90
      12,5 FRB 260 .14 .1 .12,5 .E 14 4 300 260 653 49 400 155 938 1 063 28 32 100
      12,5 FRB 260 .16 .1 .12,5 .E 16 4 300 260 653 49 400 155 938 1 045 28 32 100
      16 FRB 225 .14 .1 .16 .E 14 6 260 225 608 59 345 180 883 1 008 28 32 100
      16 FRB 260 .14 .1 .16 .E 14 6 300 260 693 59 400 165 978 1 103 28 32 120
      16 FRB 260 .16 .1 .16 .E 16 6 300 260 693 59 400 165 978 1 103 28 32 120
      16 FRB 285 .16 .1 .16 .E 16 6 320 285 723 59 420 165 1 023 1 148 28 32 135
      16 FRB 355 .19 .1 .16 .E .A 19 6 410 355 788 59 500 195 1 133 1 263 35 37 180
      16 FRB 355 .16 .1 .16 .E 16 6 410 355 788 59 500 195 1 133 1 258 28 32 180
      16 FRB 355 .19 .1 .16 .E .B 19 6 410 355 788 59 500 215 1 133 1 263 35 37 225
      20 FRB 260 .14 .1 .20 .E 14 8 300 260 748 69 400 165 1 033 1 168 28 32 130
      20 FRB 260 .16 .1 .20 .E 16 8 300 260 748 69 400 165 1 033 1 168 28 32 130
      20 FRB 320 .16 .1 .20 .E 16 8 365 320 768 69 450 180 1 101 1 236 28 32 160
      20 FRB 285 .16 .1 .20 .E 16 8 320 285 778 69 420 165 1 078 1 213 28 32 160
      20 FRB 355 .16 .1 .20 .E 16 8 410 355 853 69 500 225 1 198 1 333 28 32 250
      20 FRB 355 .19 .1 .20 .E 19 8 410 355 853 69 500 225 1 198 1 338 35 37 250
      25 FRB 400 .19 .1 .25 .E 19 8 460 400 883 69 570 220 1 258 1 398 35 37 275
      25 FRB 400 .22 .1 .25 .E 22 8 460 400 883 69 570 220 1 258 1 403 40 43 275
      29 FRB 400 .22 .1 .29 .E 22 8 460 400 883 69 570 270 1 268 1 413 40 43 365
      32 FRB 450 .26 .1 .32 .E .A 26 10 515 450 1 003 76 600 250 1 426 1 592 45 52 450
      32 FRB 450 .24 .1 .32 .E .A 24 10 515 450 1 003 76 600 250 1 426 1 592 45 52 455
      32 FRB 450 .22 .1 .32 .E 22 10 515 450 1 003 76 600 250 1 416 1 572 40 43 455
      32 FRB 450 .24 .1 .32 .E .B 24 10 515 450 1 003 76 600 333 1 426 1 592 45 52 590
      32 FRB 450 .26 .1 .32 .E .B 26 10 515 450 1 003 76 600 333 1 426 1 592 45 52 590
      40 FRB 450 .22 .1 .40 .E 22 12 515 450 1 074 84 600 333 1 487 1 655 40 43 590
      40 FRB 450 .24 .1 .40 .E 24 12 515 450 1 074 84 600 333 1 497 1 675 45 52 590
      40 FRB 450 .26 .1 .40 .E 26 12 515 450 1 074 84 600 333 1 497 1 675 45 52 590
      40 FRB 528 .28 .1 .40 .E 28 12 595 528 1 114 84 710 323 1 592 1 780 50 59 680
      40 FRB 528 .26 .1 .40 .E 26 12 595 528 1 114 84 710 323 1 592 1 770 45 52 680
      40 FRB 528 .24 .1 .40 .E 24 12 595 528 1 114 84 710 323 1 592 1 770 45 52 680
      40 FRB 575 .26 .1 .40 .E 26 12 650 575 1 138 84 770 313 1 643 1 821 45 52 750
      50 FRB 450 .26 .1 .50 .E .A 26 16 515 450 1 094 97 600 333 1 514 1 706 45 52 590
      50 FRB 450 .26 .1 .50 .E .B 26 16 515 450 1 094 97 600 363 1 514 1 706 45 52 680
      50 FRB 528 .24 .1 .50 .E 24 16 595 528 1 111 97 710 343 1 589 1 781 45 52 750
      50 FRB 528 .26 .1 .50 .E 26 16 595 528 1 111 97 710 343 1 589 1 781 45 52 750
      50 FRB 528 .28 .1 .50 .E 28 16 595 528 1 111 97 710 343 1 589 1 791 50 59 750
      50 FRB 575 .28 .1 .50 .E 28 16 650 575 1 144 97 770 313 1 649 1 851 50 59 750
      50 FRB 630 .28 .1 .50 .E 28 16 710 630 1 172 97 830 323 1 717 1 919 50 59 975
      63 FRB 575 .32 .1 .63 .E 32 16 650 575 1 223 97 770 353 1 738 1 945 60 66 975
      63 FRB 630 .32 .1 .63 .E 32 16 710 630 1 253 97 830 323 1 798 2 005 60 66 975
      63 FRB 670 .28 .1 .63 .E 28 16 760 670 1 248 97 870 453 1 813 2 015 50 59 1 800
      63 FRB 670 .32 .1 .63 .E 32 16 760 670 1 248 97 870 453 1 813 2 020 60 66 1 800
