General:
- Standard Reeve Crane Blocks may be used on a wide variety of land based cranes such as mobile and crawler cranes. They are an excellent choice where frequent block change is required.
- Double sealed maintenance free roller bearings.
- Design Factor of Safety of 4:1.
- Forged high tensile steel DIN hooks.
- Ductile iron sheaves, featuring graphite lubricated groove.
- High impact resistant side plates.
- Operational temperature range -40 up to +80°C.
- Lubrication on hook suspension.
- 4 or 8 point hook locking device.
- Fast reeve guide for fast reeving.
- Safety latch with locking pin.
- C3M finish in signal yellow with black striping.

Options:
- Double hook.
- Double hook with shackle hole.
- Quad hook.
- Shackle stud eye.

Important:
Inquiries for custom versions are welcome!

      Product Picture 1
      Product Picture 2
      Select a row from the table below, then click the add to quote button

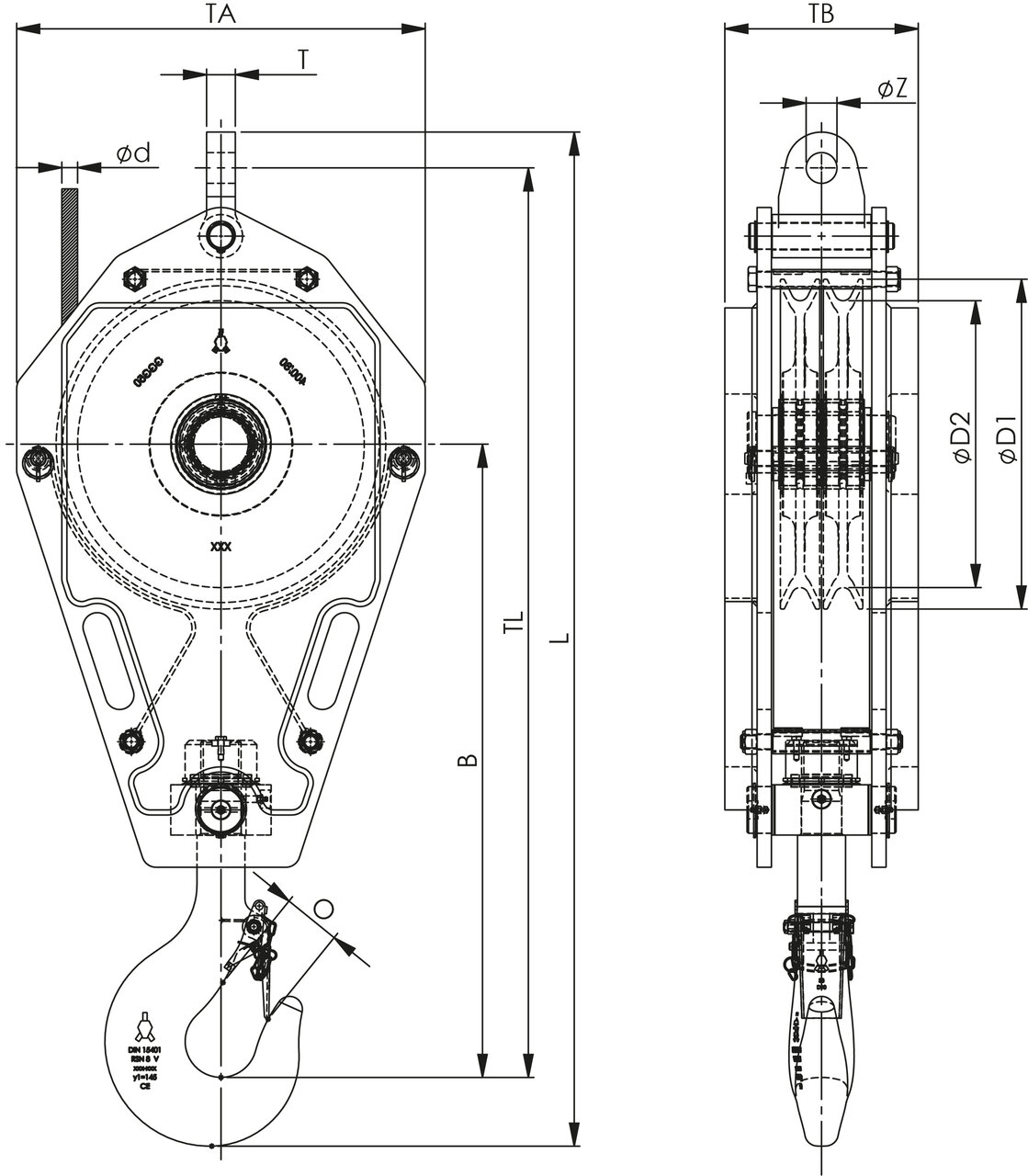

      WLL
      ton
      Model no. For wire Ø
      mm
      Hooksize Ø D1
      mm
      Ø D2
      mm
      B
      mm
      O
      mm
      TA
      mm
      TB
      mm
      TL
      mm
      L
      mm
      T
      mm
      Ø Z
      mm
      Weight
      kg
      16 FRB 225 .14 .2 .16 .E 14 6 260 225 608 59 345 180 883 1 103 28 32 105
      16 FRB 260 .16 .2 .16 .E 16 6 300 260 693 59 400 165 978 1 168 28 32 125
      16 FRB 260 .14 .2 .16 .E 14 6 300 260 693 59 400 165 978 1 168 28 32 125
      20 FRB 260 .14 .2 .20 .E 14 8 300 260 748 69 400 165 1 033 1 103 28 32 130
      20 FRB 260 .16 .2 .20 .E 16 8 300 260 748 69 420 165 1 033 1 213 28 32 130
      20 FRB 285 .16 .2 .20 .E 16 8 365 285 778 69 420 165 1 078 1 236 28 32 160
      20 FRB 320 .16 .2 .20 .E 16 8 365 320 768 69 450 180 1 101 1 231 28 32 160
      25 FRB 320 .16 .2 .25 .E 16 8 365 320 763 69 450 230 1 096 1 333 28 32 205
      29 FRB 355 .19 .2 .29 .E 19 8 410 355 848 69 500 225 1 193 1 393 35 37 265
      29 FRB 400 .19 .2 .29 .E 19 8 460 400 873 69 570 240 1 253 1 398 35 37 365
      29 FRB 400 .22 .2 .29 .E 22 8 460 400 873 69 570 240 1 253 1 572 40 43 365
      32 FRB 450 .22 .2 .32 .E 22 10 515 450 1 003 76 600 250 1 416 1 655 40 43 485
      40 FRB 450 .26 .2 .40 .E 26 12 515 450 1 074 84 600 333 1 497 1 689 45 52 590
      40 FRB 450 .22 .2 .40 .E 22 12 515 450 1 074 84 600 333 1 487 1 665 40 43 590
      40 FRB 450 .24 .2 .40 .E 24 12 515 450 1 074 84 600 333 1 487 1 689 45 52 590
      50 FRB 450 .24 .2 .50 .E 22 16 515 450 1 074 97 600 363 1 497 1 675 45 52 680
      50 FRB 450 .26 .2 .50 .E 26 16 515 450 1 074 97 600 363 1 497 1 848 45 52 680
      63 FRB 528 .24 .2 .63 .E 24 16 595 528 1 202 97 710 383 1 656 1 848 45 52 1 000
      63 FRB 528 .26 .2 .63 .E 26 16 595 528 1 202 97 710 383 1 656 1 946 45 52 1 000
      63 FRB 528 .28 .2 .63 .E 28 16 595 528 1 203 97 710 383 1 681 1 971 50 59 1 000
      80 FRB 528 .26 .2 .80 .E 26 20 595 528 1 272 110 710 412 1 736 1 883 45 52 1 065
      80 FRB 528 .28 .2 .80 .E 28 20 595 528 1 273 110 710 412 1 751 2 117 50 59 1 065
      100 FRB 670 .28 .2 .100 .E 28 20 760 670 1 332 110 870 482 1 897 2 122 50 59 2 240
      100 FRB 670 .32 .2 .100 .E 32 20 760 670 1 332 110 870 482 1 897 83,54 60 66 2 240
