General:
- Standard Reeve Crane Blocks may be used on a wide variety of land based cranes such as mobile and crawler cranes. They are an excellent choice where frequent block change is required.
- Double sealed maintenance free roller bearings.
- Design Factor of Safety of 4:1.
- Forged high tensile steel DIN hooks.
- Ductile iron sheaves, featuring graphite lubricated groove.
- High impact resistant side plates.
- Operational temperature range -40 up to +80°C.
- Lubrication on hook suspension.
- 4 or 8 point hook locking device.
- Fast reeve guide for fast reeving.
- Safety latch with locking pin.
- C3M finish in signal yellow with black striping.

Options:
- Double hook.
- Double hook with shackle hole.
- Quad hook.
- Shackle stud eye.

Important:
Inquiries for custom versions are welcome!

      Product Picture 1
      Product Picture 2
      Select a row from the table below, then click the add to quote button

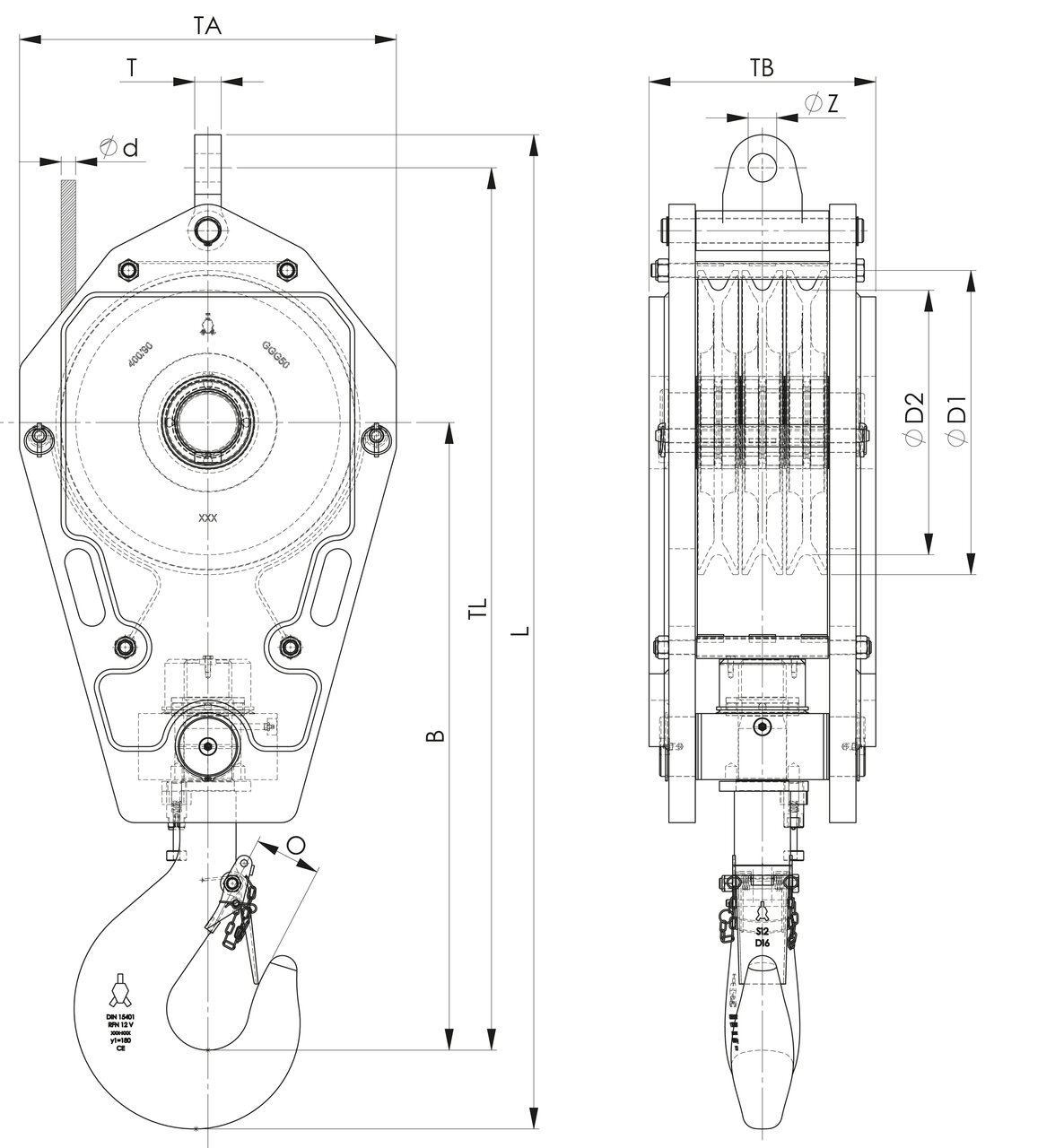

      Model no. For wire Ø
      mm
      Hooksize Ø D1
      mm
      Ø D2
      mm
      B
      mm
      O
      mm
      TA
      mm
      TB
      mm
      TL
      mm
      L
      mm
      T
      mm
      Ø Z
      mm
      FRB 225 .14 .3 .20 .E 14 8 260 225 718 69 345 180 993 1 128 28 32
      FRB 260 .14 .3 .20 .E 14 8 300 260 723 69 400 220 1 018 1 153 28 32
      FRB 260 .14 .3 .25 .E 14 8 300 260 698 69 400 260 993 1 128 28 32
      FRB 285 .16 .3 .29 .E 16 8 320 280 703 69 420 180 1 013 1 148 28 32
      FRB 320 .16 .3 .20 .E 16 8 365 320 763 69 450 180 1 096 1 231 28 32
      FRB 320 .16 .3 .25 .E 16 8 365 320 763 69 450 220 1 096 1 231 28 32
      FRB 320 .16 .3 .29 .E .A 16 8 365 320 763 69 450 220 1 096 1 231 28 32
      FRB 320 .16 .3 .29 .E .B 16 8 365 320 763 69 450 230 1 096 1 231 28 32
      FRB 355 .19 .3 .32 .E 19 10 410 355 863 76 500 280 1 208 1 359 35 37
      FRB 360 .19 .3 .40 .E 19 12 420 360 899 84 510 342 1 254 1 417 35 37
      FRB 360 .19 .3 .50 .E 19 16 420 360 899 97 510 402 1 254 1 431 35 37
      FRB 400 .19 .3 .40 .E 19 12 460 400 928 84 570 343 1 323 1 486 35 37
      FRB 400 .19 .3 .50 .E 19 16 460 400 949 97 570 343 1 324 1 501 35 37
      FRB 400 .22 .3 .50 .E 22 16 460 400 949 97 570 343 1 324 1 506 40 43
      FRB 450 .22 .3 .63 .E 22 16 515 450 1 038 97 600 303 1 448 1 630 40 43
      FRB 450 .24 .3 .63 .E .A 24 16 515 450 1 038 97 600 313 1 454 1 646 45 52
      FRB 450 .24 .3 .63 .E .B 24 16 515 450 1 038 97 600 363 1 454 1 646 45 52
      FRB 450 .26 .3 .63 .E .A 26 16 515 450 1 038 97 600 313 1 461 1 653 45 52
      FRB 450 .26 .3 .63 .E .B 26 16 515 450 1 038 97 600 363 1 461 1 653 45 52
      FRB 450 .26 .3 .80 .E 26 20 515 450 1 182 110 600 362 1 605 1 815 45 52
      FRB 528 .24 .3 .80 .E 24 20 595 528 1 272 110 710 412 1 736 1 946 45 52
      FRB 528 .26 .3 .80 .E 26 20 595 528 1 272 110 710 412 1 736 1 946 45 52
      FRB 528 .26 .3 .100 .E 26 25 595 528 1 363 132 710 462 1 826 2 056 45 52
      FRB 528 .28 .3 .80 .E 28 20 595 528 1 272 110 710 412 1 751 1 971 50 59
      FRB 528 .28 .3 .100 .E 28 25 595 528 1 363 132 710 462 1 841 2 081 50 59
      FRB 575 .28 .3 .100 .E 28 25 650 575 1 303 132 770 432 1 808 2 048 50 59
      FRB 670 .28 .3 .125 .E 28 25 760 670 1 428 132 870 622 1 993 2 233 50 59
      FRB 670 .32 .3 .125 .E 32 25 760 670 1 428 132 870 622 1 993 2 238 60 66
