WARNING! Not to be heat-treated.

  • Material: Alloy steel grade 10.
  • Marking: Alloy steel grade 10.
  • Finish: Painted.
  • Safety factor: 4:1.
  • Grade: 10
kwb_GT_S_225mm
kwb_GT_S_m_225mm
Select a row from the table below, then click the add to quote button

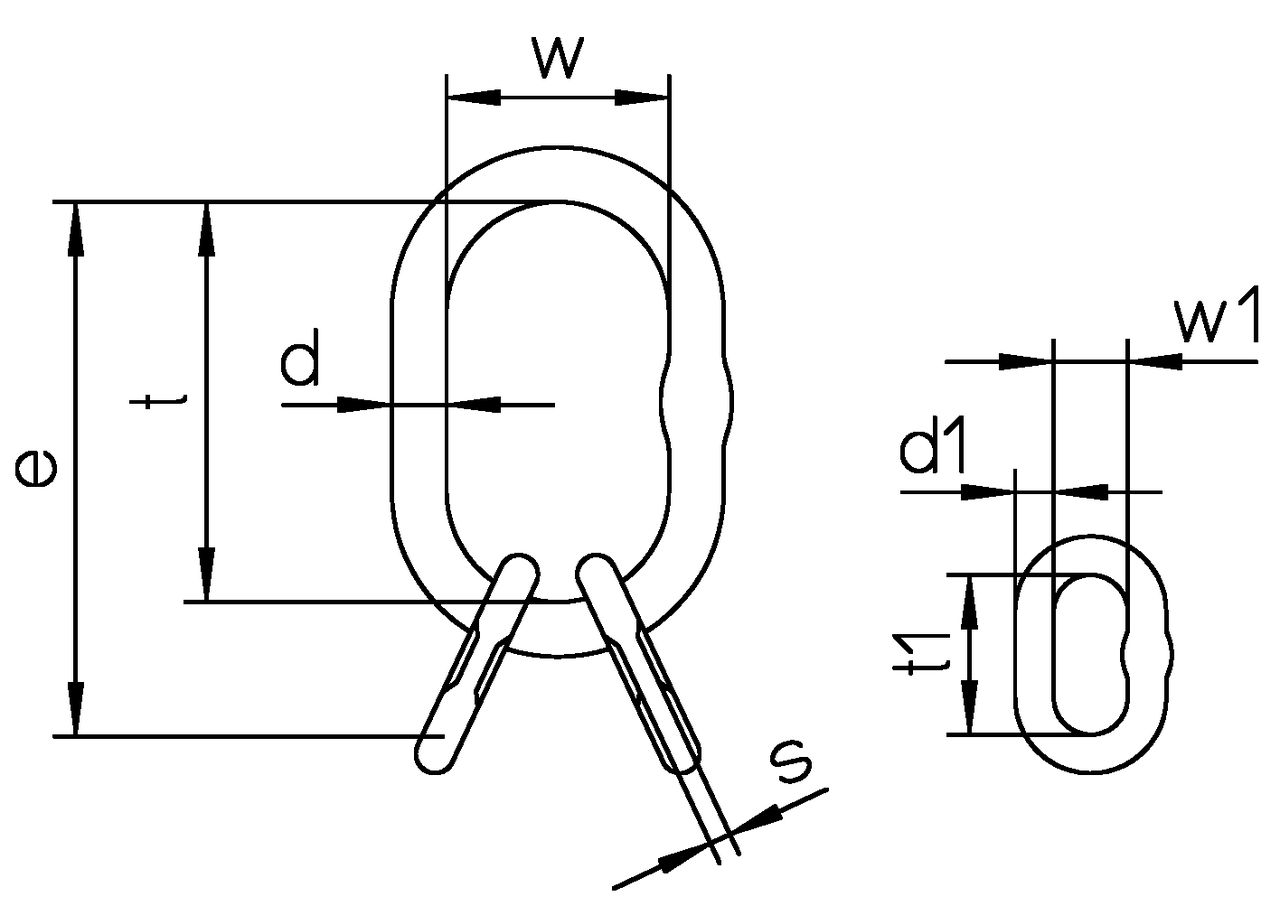

Part Code Code WLL
ton
s (mm) w (mm) w1 (mm) t1 (mm) D
mm
e (mm) t (mm) D1 (mm) Weight
kg
11.0245929 GT/S-6-10 4.2 10 95 25 54 19 214 160 13 1.4
11.0246055 GT/S-8-10 6.6 14 110 34 70 23 230 160 17 2.4
11.0246198 GT/S-10-10 10.1 14 110 40 85 27 275 190 20 4
11.0246211 GT/S-13-10 15.7 17 130 50 115 33 345 230 23 7.1
11.0246218 GT/S-16-10 21.2 20 150 65 140 38 415 275 27 11
