Master Link Assemblies GT/S Grade 10

Home / Products / Rigging / KWB chain & components, grade 100 / Master Link Assemblies GT/S Grade 10

WARNING! Not to be heat-treated.

Material: Alloy steel grade 10.
Marking: CE-marked, Alloy steel grade 10.
Finish: Painted.

Safety factor: 4:1
Grade: 10

Select a row from the table below, then click the add to quote button

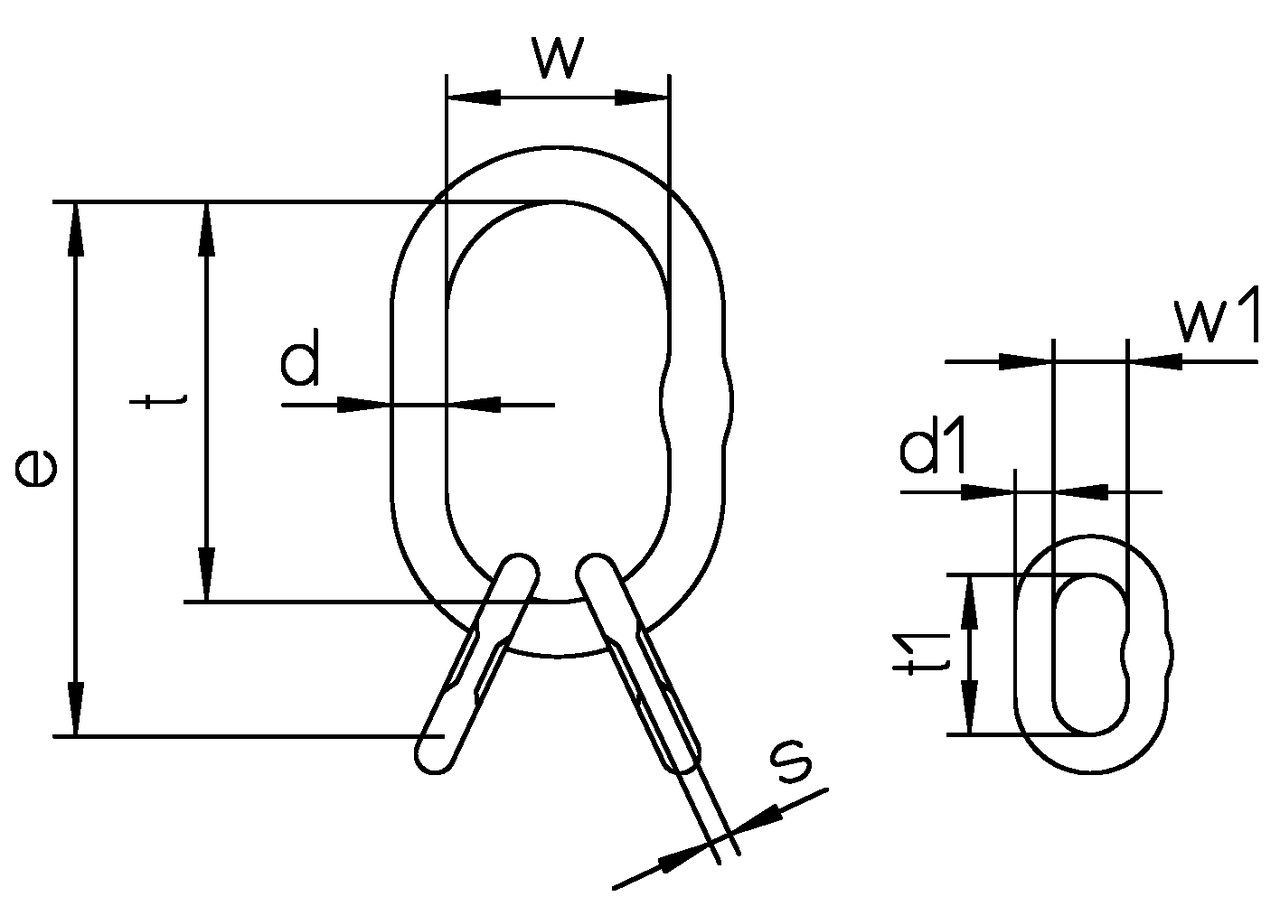

Part Code	Code	WLL ton	s mm	w mm	w1 mm	t1 mm	D mm	e mm	t mm	D1 mm	Weight kg
11.0245929	GT/S-6-10	4,2	10	95	25	54	19	214	160	13	1,4
11.0246055	GT/S-8-10	6,6	14	110	34	70	23	230	160	17	2,4
11.0246198	GT/S-10-10	10,1	14	110	40	85	27	275	190	20	4
11.0246211	GT/S-13-10	15,7	17	130	50	115	33	345	230	23	7,1
11.0246218	GT/S-16-10	21,2	20	150	65	140	38	415	275	27	11
