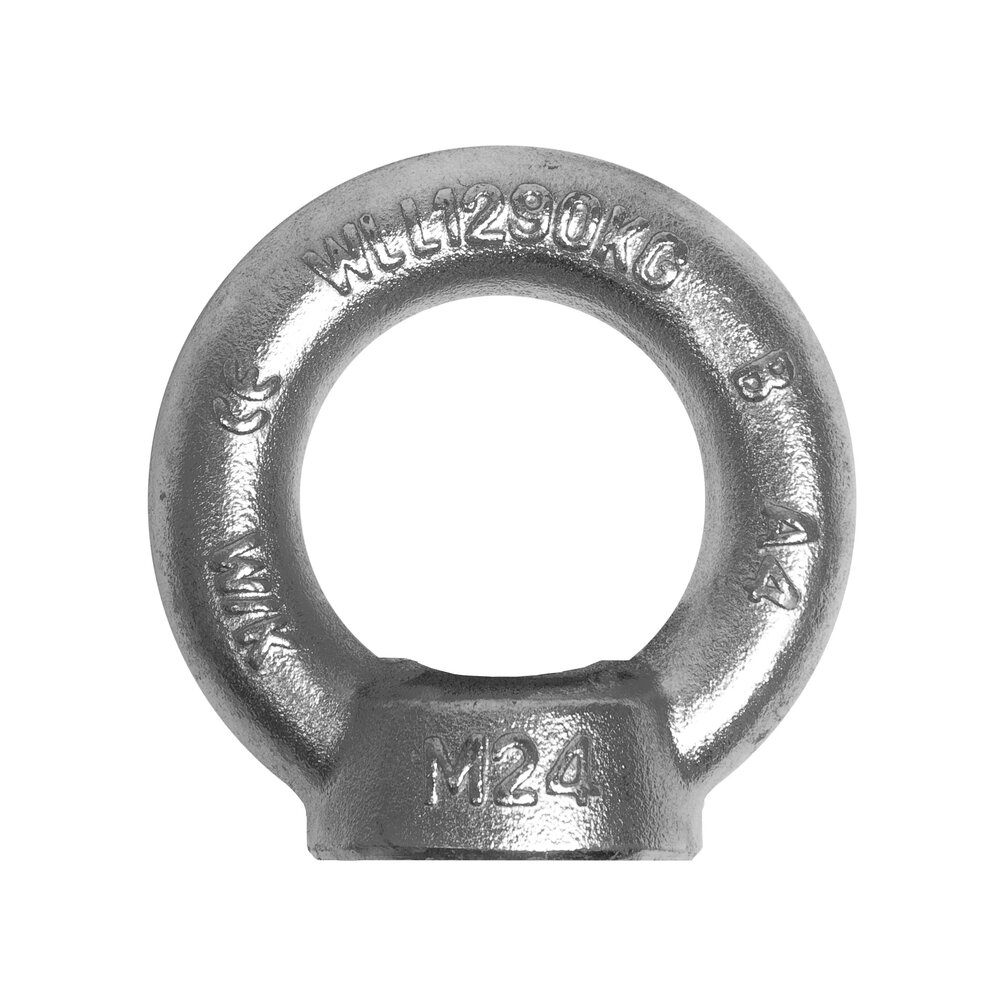

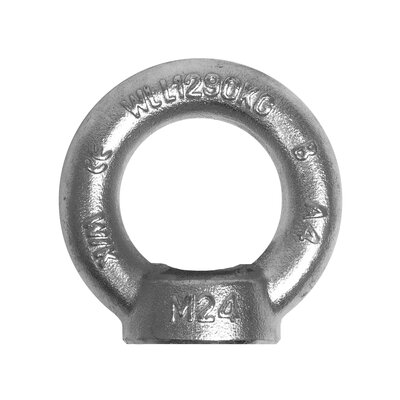

Stainless steel lifting eye for vertical lifting.
- Material: AISI 316
- Marking: According to standard, CE-marked
- Temperature range: -40°C - (+)200°C
- Finish: Polished
- Standard: DIN 582
- Note: Only for vertical lifting
- Warning: Not to be heat-treated
- Safety factor: 4:1
WORKING LOAD LIMITS
 |
 |
 |
 |
|
 |
 |
|
||
| Thread | WLL (t) | WLL (t) | WLL (t) | WLL (t) | WLL (t) | WLL (t) | WLL (t) | WLL (t) | |
| 0 - 45° | 45-60° | 0 - 45° | 45-60° | ||||||
| M6 | 0,08 | 0,16 | - | - | |||||
| M8 | 0,14 | 0,28 | 0,1 | 0,14 | |||||
| M10 | 0,23 | 0,46 |
