General:
- Standard Reeve Crane Blocks may be used on a wide variety of land based cranes such as mobile and crawler cranes. They are an excellent choice where frequent easy block change is not a required main feature, or lifting height is limited.
- Double sealed maintenance free roller bearings.
- Design Factor of Safety of 4:1.
- Forged high tensile steel DIN hooks.
- Ductile iron sheaves, featuring graphite lubricated groove.
- High impact resistant side plates.
- Operational temperature range -40 up to +80°C.
- Lubrication on hook suspension.
- Short design for increased lifting height.
- Safety latch with locking pin.
- C3M finish in signal yellow.

Options:
- Double hook.
- Double hook with shackle hole.
- Quad hook.
- Shackle stud eye.

Important:
Inquiries for custom versions are welcome!

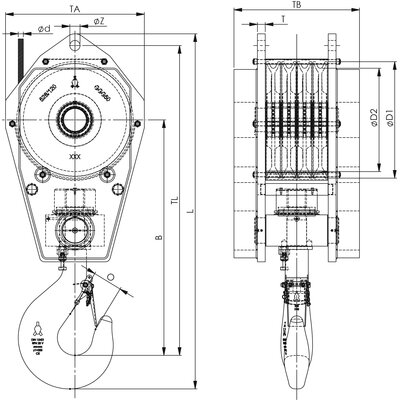

      Product Picture 1
      Product Picture 2
      Select a row from the table below, then click the add to quote button
      WLL
      ton
      Model no. For wire Ø
      mm
      Hooksize Ø D1
      mm
      Ø D2
      mm
      B
      mm
      O
      mm
      TA
      mm
      TB
      mm
      TL
      mm
      L
      mm
      T
      mm
      Ø Z
      mm
      Weight
      kg
      35 SRB 285 .16 .4 .35 .E 16 10 325 285 660 76 400 346 920 1 026 28 32 260
      50 SRB 355 .19 .4 .50 .E 19 16 410 355 839 97 500 392 1 114 1 291 35 37 475
      63 SRB 400 .22 .4 .63 .E 22 16 460 400 905 97 570 373 1 200 1 382 40 43 525
      63 SRB 450 .22 .4 .63 .E 22 16 515 450 965 97 600 413 1 321 1 503 40 43 725
      80 SRB 450 .24 .4 .80 .E 24 20 515 450 1 047 110 600 493 1 310 1 520 45 52 960
      80 SRB 450 .26 .4 .80 .E 26 20 515 450 1 047 110 600 493 1 310 1 520 45 52 960
      100 SRB 528 .26 .4 .100 .E 26 25 595 528 1 223 132 710 512 1 593 1 823 45 52 1 250
      100 SRB 528 .28 .4 .100 .E 28 25 595 528 1 223 132 710 512 1 593 1 833 50 59 1 250
      160 SRB 670 .28 .4 .160 .E 28 40 760 670 1 541 167 870 682 2 106 2 388 50 59 3 150
      160 SRB 670 .32 .4 .160 .E 32 40 760 670 1 541 167 870 682 2 106 2 393 60 66 3 150
