- No test certificate possible.
- Groove in sheave may be adjusted to other wire rope diameters.

      Product Picture 1
      Product Picture 2
      Select a row from the table below, then click the add to quote button

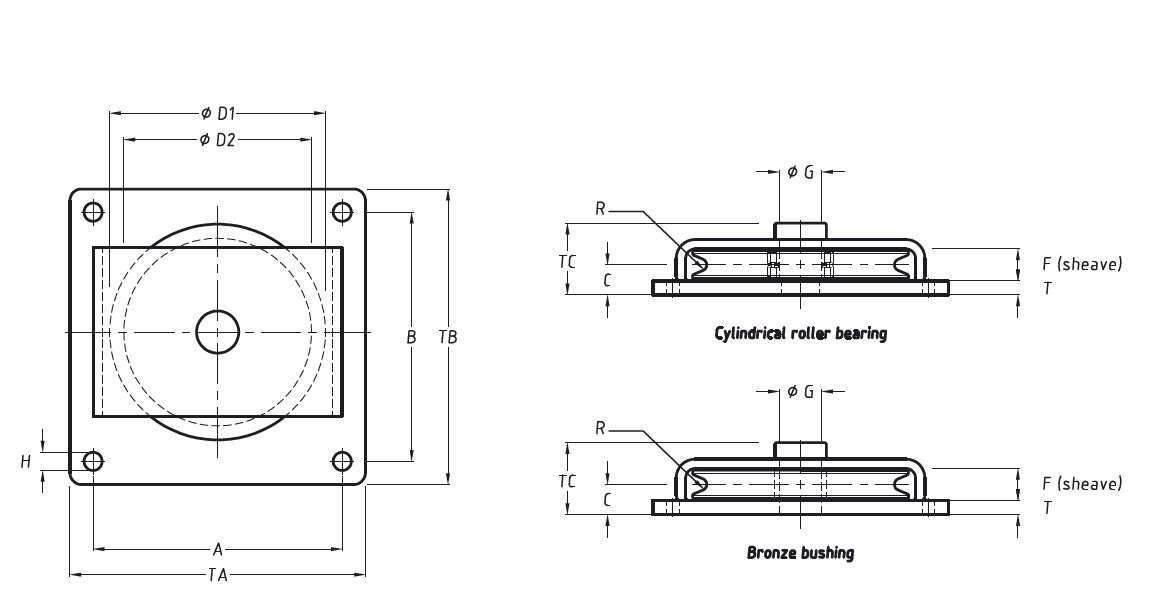

      Part Code Rope diameter
      mm
      WLL
      ton
      table.heading.Bearing Bearing A
      mm
      B
      mm
      C
      mm
      D1
      mm
      D2
      mm
      F
      mm
      G
      mm
      H
      mm
      T
      mm
      R
      mm
      TA
      mm
      TB
      mm
      TC
      mm
      Ø D1
      mm
      Ø D2
      mm
      ØG
      mm
      Weight
      kg
      16.19251250170 10 1 Bronze bearing Bronze 180 150 22,5 125 105 27 22 9 8 5,5 200 170 54 5
      16.19251250171 10 1 Ball bearing 2 x Ball 180 150 22,5 27 9 8 5,5 200 170 54 125 105 22 5
      16.19251500270 12 2 Bronze bearing Bronze 220 190 31 150 120 40 30 11 10 6,5 250 220 72 10
      16.19251500271 12 2 Ball bearing 2 x Ball 220 190 31 40 11 10 6,5 250 220 72 150 120 30 10
      16.19252000370 14 3 Bronze bearing Bronze 290 240 33 200 165 40 30 13,5 12 7,5 320 270 76 17
      16.19252000371 14 3 Ball bearing 2 x Ball 290 240 33 40 13,5 12 7,5 320 270 76 200 165 30 17
      16.19252500470 18 4 Bronze bearing Bronze 360 310 38,5 250 210 45 35 17,5 15 9,5 400 350 86 32
      16.19252500471 18 4 Roller bearing Straight 360 310 38,5 45 17,5 15 9,5 400 350 86 250 210 35 32
      16.19253000670 20 6 Bronze bearing Bronze 400 360 46 300 255 50 40 22 20 11 450 410 99 50
      16.19253000671 20 6 Roller bearing Straight 400 360 46 50 22 20 11 450 410 99 300 255 40 50
      16.19253500870 22 8 Bronze bearing Bronze 460 420 46 350 305 50 45 26 20 12 520 480 99 70
      16.19253500871 22 8 Roller bearing Straight 460 420 46 50 26 20 12 520 480 99 350 305 45 70
      16.19254001070 24 10 Bronze bearing Bronze 530 480 51 400 345 60 50 32 20 13 600 550 113 100
      16.19254001071 24 10 Roller bearing Straight 530 480 51 60 32 20 13 600 550 113 400 345 50 100
