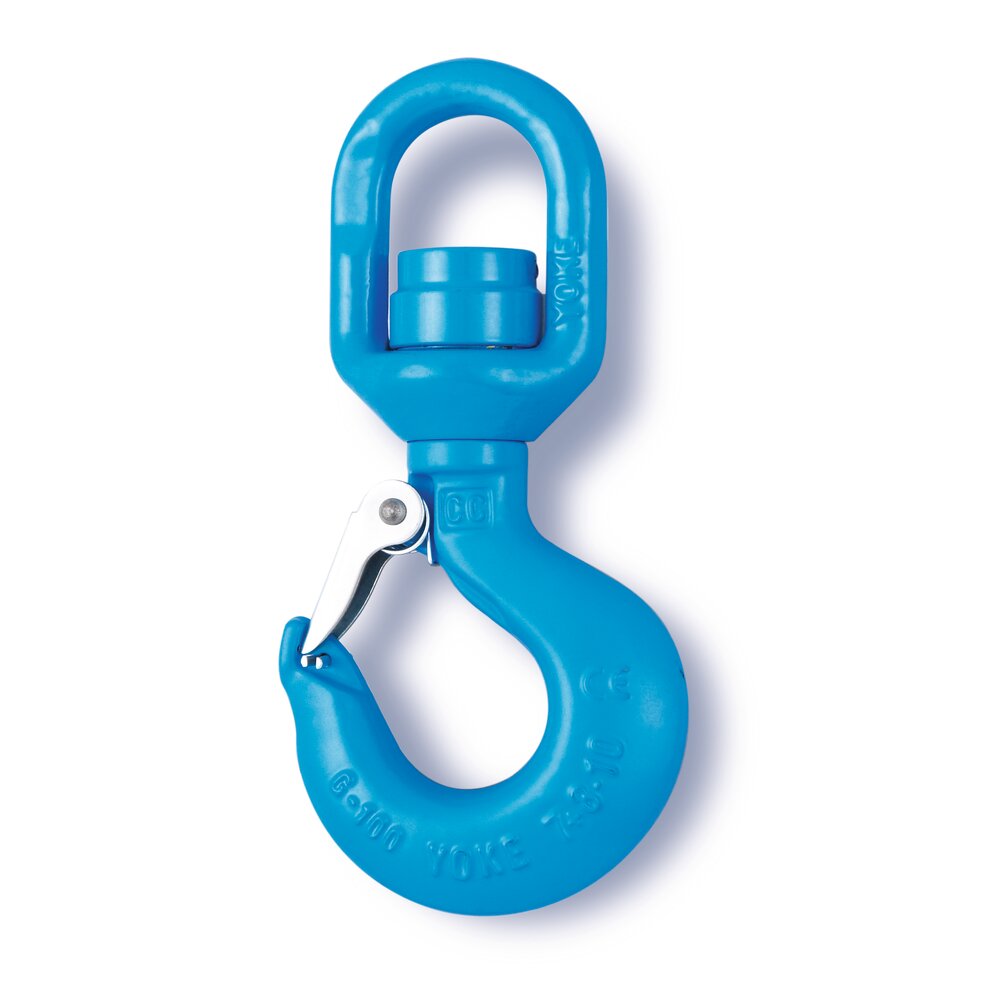

Built with ball bearing and enables full swivel feature under load. At least 25% greater WLL than traditional Grade 8 products. Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Fatigue rated to 20,000 cycles at 1.5 times the WLL. Magnaflux crack detection is performed 100% on each batch.

  • Material: Quenched and Tempered Alloy Steel.
  • Marking: According to standard
  • Temperature range: Tempering temperature minimum 400°C
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

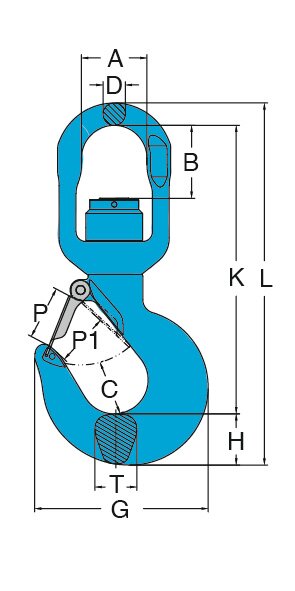

Part Code WLL
ton
Hook (*) code (*) For Grade 100 Chain
mm
A
mm
B
mm
C
mm
D
mm
G
mm
H
mm
K
mm
L
mm
P
mm
P1
mm
T
mm
Weight
kg
11.108-175N-015 1.5 BB 6 32 23 25 12 80 21 126 158 24 19 18 0.7
11.108-175N-02 2 CC 7.8 36 29 26 13 91 25 143 181 24 20 22 0.9
11.108-175N-03 3 DD 10 41 35 29 16 102 29 172 217 28 25 24 1.6
11.108-175N-05 5 EE 13 46 44 38 21 130 36 211 269 35 31 31 3.2
11.108-175N-07 7 FF 16 61 51 49 23 166 46 258 328 43 39 42 5.7
11.108-175N-11 11 GG 20 74 82 62 25 196 58 326 409 61 57 48 9.5
11.108-175N-15 15 HH 22 97 96 65 33 221 64 372 471 72 62 56 16
